Working Principle
The AUTOOL Automotive Articulating Borescope utilizes optical and electronic imaging technologies. The front of the device is equipped with a miniature camera and an LED light source, which illuminates the target area and captures images. The camera transmits the image signal via fiber optics, cables, or wirelessly to a display device. After decoding, the signal is shown in real-time on the screen. Some models support functions such as image magnification, image inversion, and video/photo recording. The flexible probe is bendable, making it suitable for accessing complex, narrow structures. The automotive borescope is widely used for engine wear detection, pipeline blockage inspection, and hidden wiring observation, making it an essential tool for efficient and non-destructive testing.

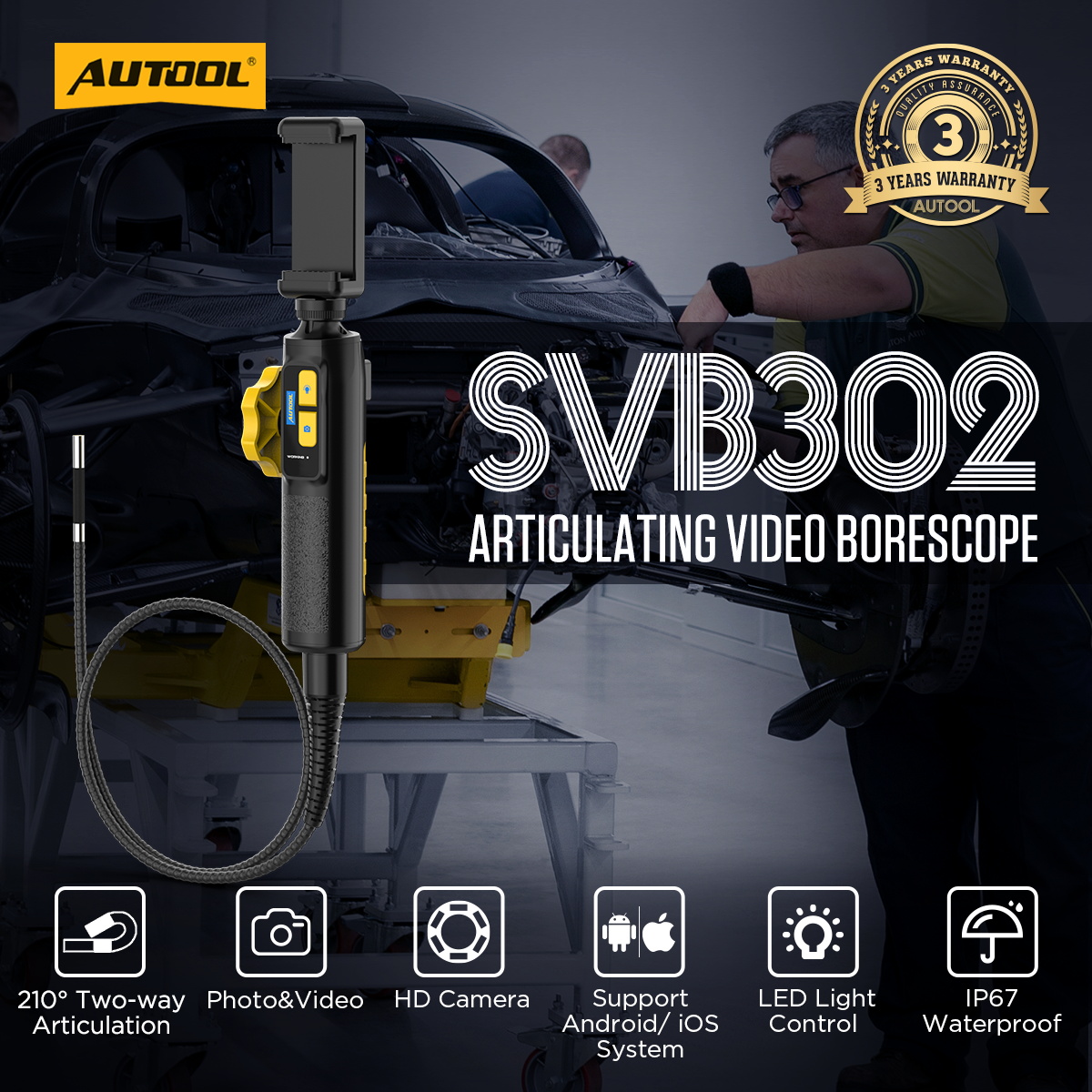

AUTOOL SVB302 automotive borescope Features
Two Way-210° Steering Lens: Narrow curved spaces accessible to small probes, such as automotive evaporators, combustion chambers, and three-way catalytic converters.
Lens Light Control: The camera features 6 high-intensity LED lights with 3 levels of adjustable brightness for inspecting in various levels of darkness.
Multilingual: Support multilingual settings: English, French, German, Italian, Spanish Russian, Chinese, Japanese, etc.
IP67 Waterproof: The waterproof grade of the camera is IP67, with waterproof and oil-resistant performance, which can work in wet pipes.
Widely Used: It applies to auto inspection and mechanical maintenance. construction industry, power facilities, chemical pipelines, security monitoring, etc.
Support Multiple Model Devices: support mobile devices such as Android or Apple mobile phones, PADS, or laptops.
Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. If you have any problems, please contact us, and we will respond within 24 hours!
Operating Instructions
1. Press and hold the power button and open the camera protective cover.
2. Adjust the ideal lighting and insert the probe into the engine.
3. Use the left gear to adjust the direction of the camera.
4. Multifunctional Use: Zooming and image inversion can be performed using the buttons on the LED screen.
5. The camera handle has a photo button for taking pictures or recording videos.
