Working Principle
The AUTOOL Automotive Articulating Borescope utilizes optical and electronic imaging technologies. The front of the device is equipped with a miniature camera and an LED light source, which illuminates the target area and captures images. The camera transmits the image signal via fiber optics, cables, or wirelessly to a display device. After decoding, the signal is shown in real-time on the screen. Some models support functions such as image magnification, image inversion, and video/photo recording. The flexible probe is bendable, making it suitable for accessing complex, narrow structures. The automotive borescope is widely used for engine wear detection, pipeline blockage inspection, and hidden wiring observation, making it an essential tool for efficient and non-destructive testing.

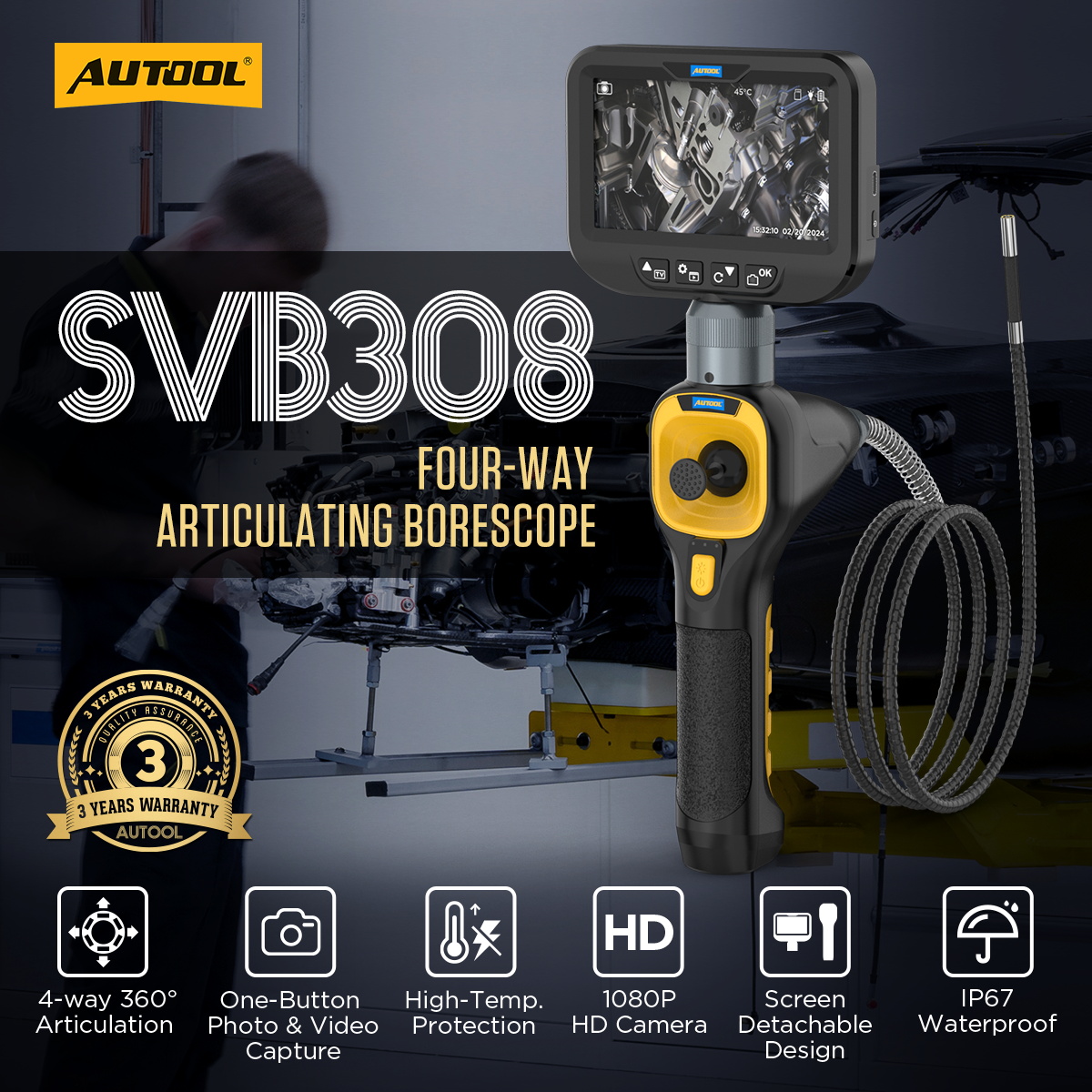

AUTOOL SVB308 Endoscope Camera Features
360° Four-way Lens: The articulating borescope features a joystick-controlled design, allowing the lens to rotate 360 degrees. It can easily access narrow, curved spaces with flexibility.
Detachable Design: The flexible hose and display screen are detachable, making it convenient for storage and portability.
HD Camera: Equipped with a 1080P HD camera and 6 LED lights, providing accurate and detailed feedback with high-resolution imaging. The LED lights ensure clear visibility even in low-light or dark conditions.
Detail Design: The 4.2-inch display comes with a built-in 32GB memory card, supporting JPG image and AVI video recording. A sturdy magnetic base makes it easy to store after use.
IP67 Waterproof Rating: The borescope camera is rated IP67 for water and oil resistance, making it suitable for use nside damp pipes.
Three-year warranty: For damages caused by non-human factors, AUTOOL promises to provide free replacement parts within three years. If you have any requests, please feel free to contact us, and we will respond promptly within 24 hours.
Operating Instructions
1. Press and hold the power button and open the camera protective cover.
2. Adjust the ideal lighting and insert the probe into the engine.
3. Use the joystick to adjust the camera direction.
4. Multifunctional Use: Zooming and image inversion can be performed using the buttons on the LED screen.
5. The camera handle has a photo button for taking pictures or recording videos.
