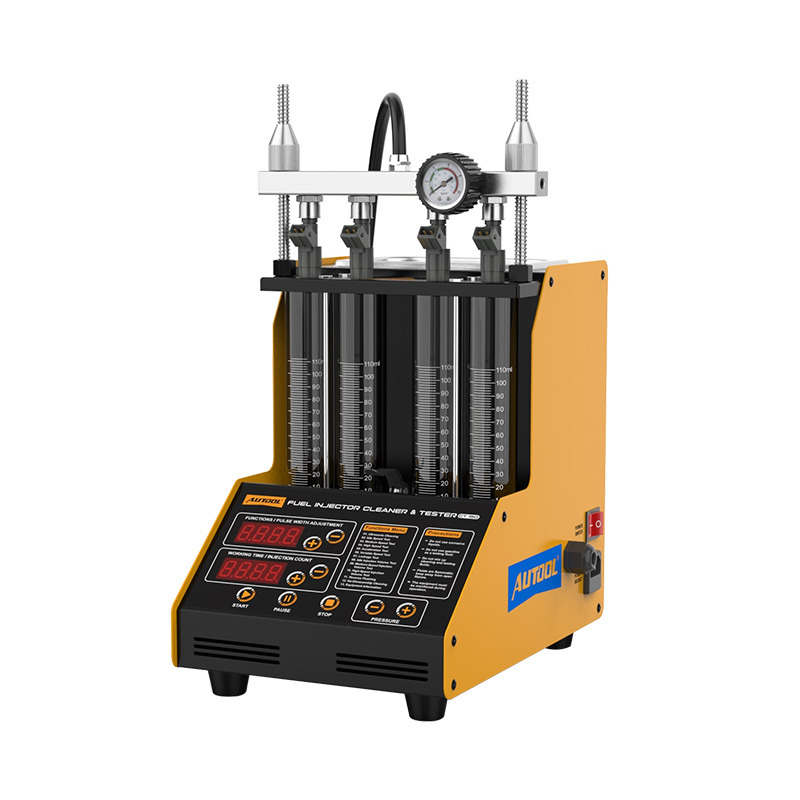

The AUTOOL CT150 Fuel Injector Tester & Cleaner combines ultrasonic cleaning technology with microcomputer oil pressure closed-loop control technology. The built-in microcomputer control unit precisely monitors and adjusts the oil pressure, stably simulating various engine operating conditions, such as idle and high-speed running. The ultrasonic cleaning technology efficiently removes carbon deposits and oil sludge inside the fuel injectors, while the microcomputer control system ensures stable oil pressure and accurate testing during operation through closed-loop regulation. This seamless integration of cleaning and performance testing significantly enhances the cleaning effect and work efficiency of the fuel injectors.
AUTOOL CT150 Fuel Injector Tester & Cleaner Features
9 Testing Functions:
Idle Speed Test (0-20ms): Simulates engine idle speed operation to test the performance of the fuel injectors.
Medium-Speed Test (0-7.5ms): Simulates engine mid-speed operation to test the fuel injector performance.
High-Speed Test (0-4ms): Simulates engine high-speed operation to test the performance of the fuel injectors.
Acceleration Test: Simulates vehicle’s acceleration state to test the working performance of the fuel injectors.
Shift Speed Test: Simulates the vehicle’s gear-shifting state to test the working performance of the fuel injectors.
Leakage Check Test: Tests the sealing integrity of the fuel injectors.
Idle Spray Volume Test: Simulates the engine’s idle state to assess the atomization performance of the fuel injectors.
Medium-Speed Spray Volume Test: Simulates the engine’s medium-speed state to assess the atomization performance of the fuel injectors.
High-Speed Spray Volume Test: Simulates the engine’s high-speed state to assess the atomization performance of the fuel injectors.

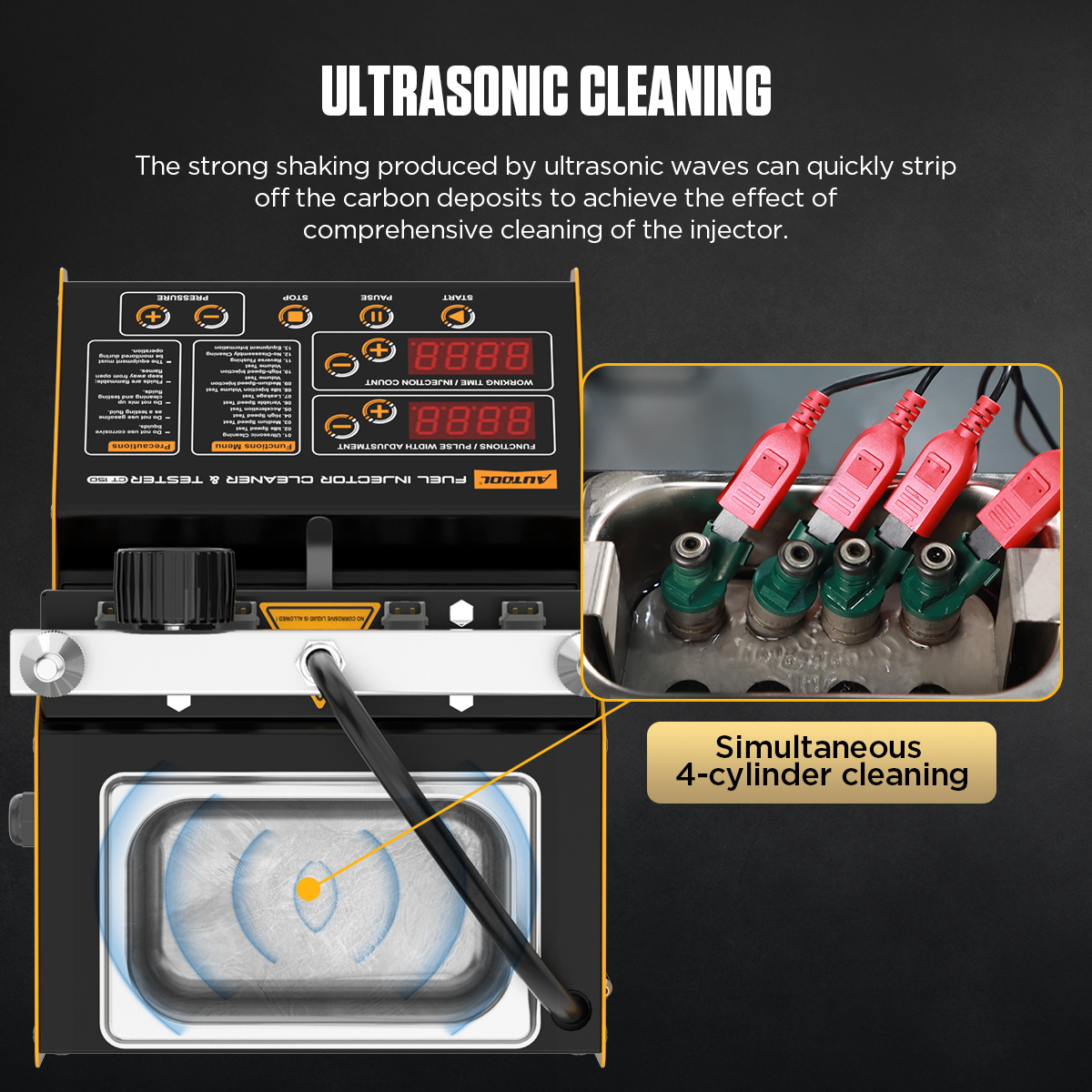

Ultrasonic Deep Cleaning: The CT150 Fuel Injector Tester & Cleaner utilizes pulse signal cables to send signals to the fuel injectors, combined with cleaning fluid and ultrasonic vibration technology. This process efficiently removes carbon deposits and stubborn impurities inside the fuel injectors, ensuring thorough and deep cleaning.
Reverse Cleaning Function: The AUTOOL CT150 Fuel Injector Tester utilizes cleaning fluid injected from the nozzle’s outlet to the inlet, effectively removing internal deposits and filter impurities. This feature is particularly suitable for top-feed fuel injectors, significantly enhancing the cleaning performance.

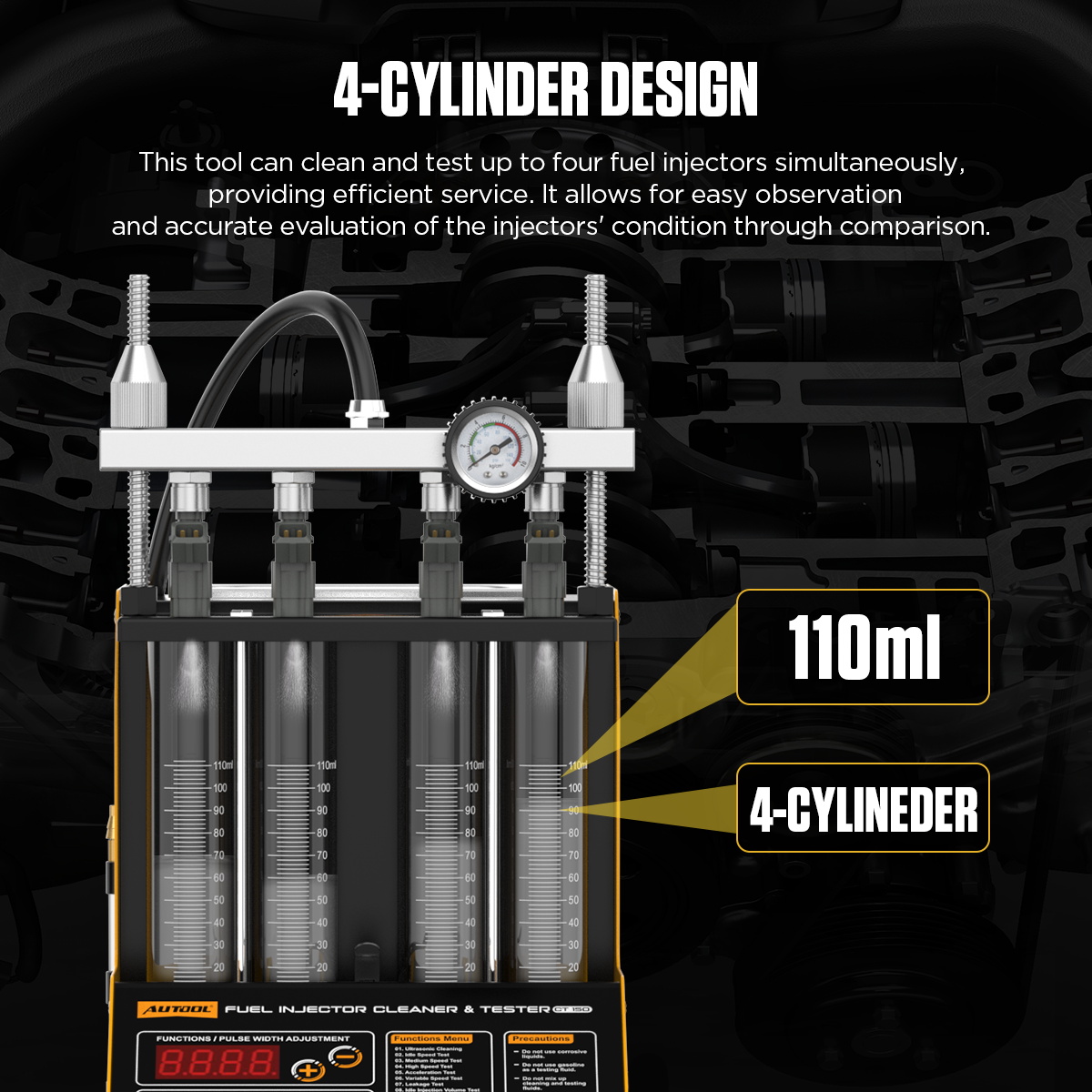

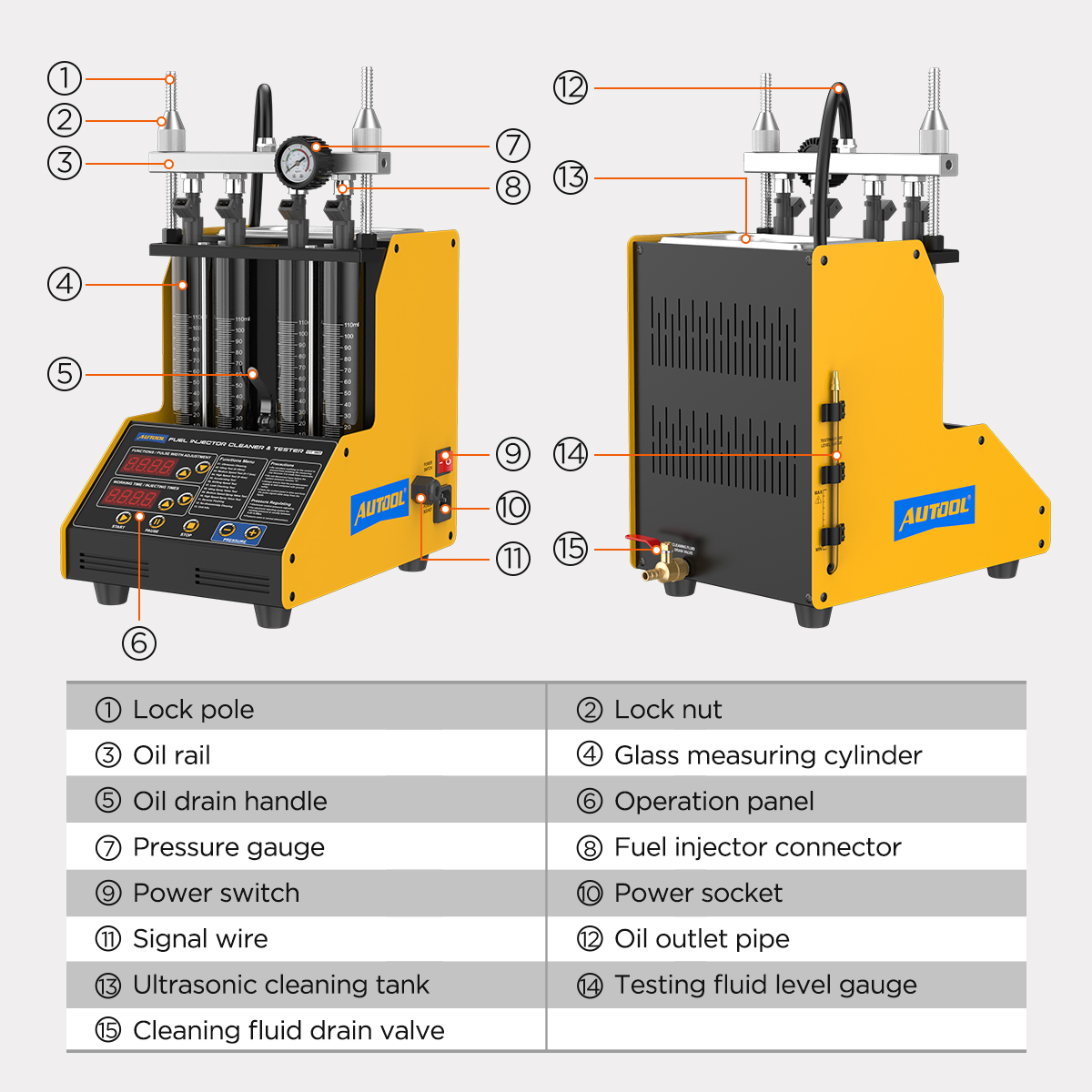

Multi-Injector Cleaning and Testing: The CT150 Fuel Injector Tester & Cleaner features four independent glass tubes, enabling the simultaneous cleaning and testing of up to four injectors. This greatly enhances cleaning efficiency, streamlines the testing process, and ensures more convenient operation.

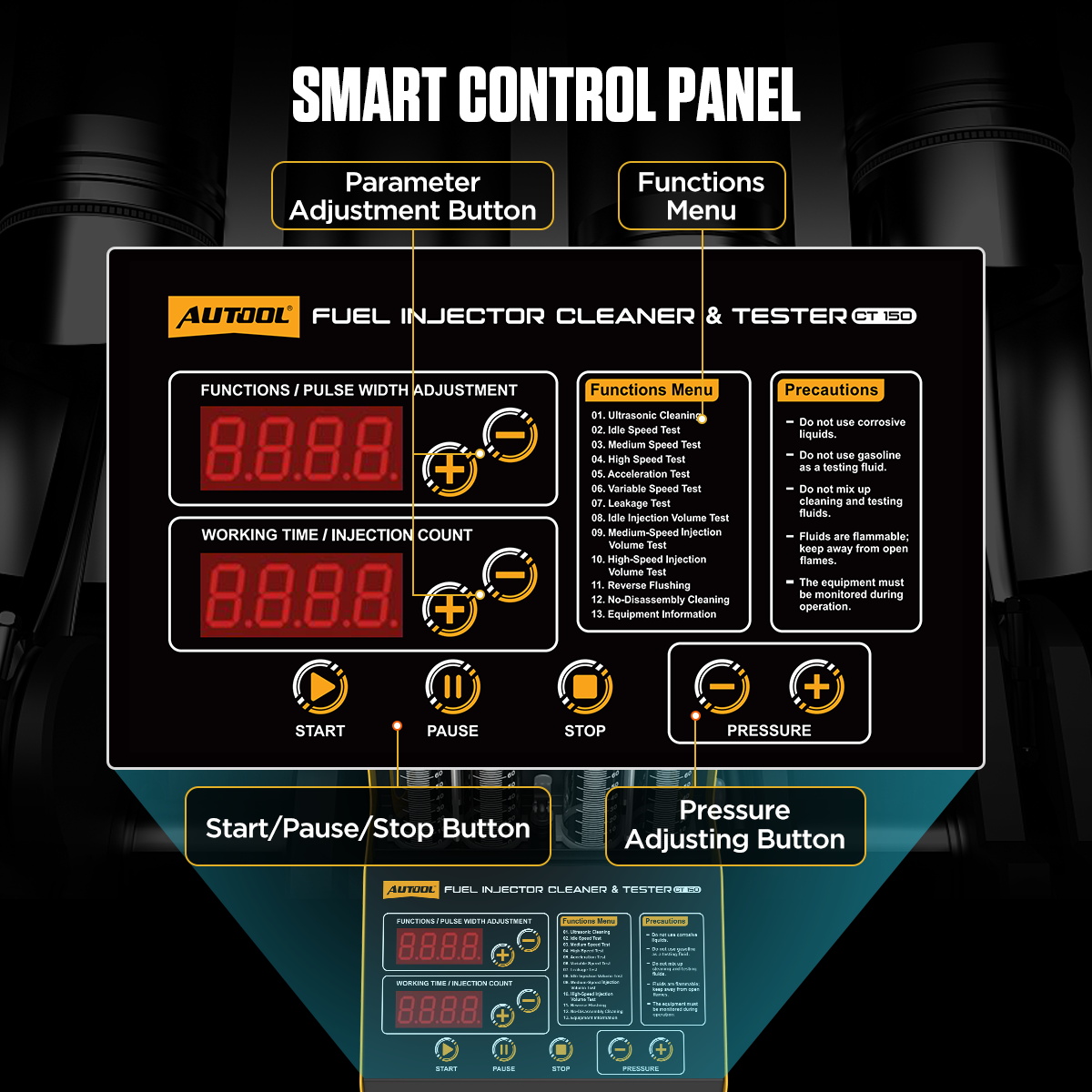

Intuitive Display Function: Equipped with a liquid level gauge for precise indication of the added test fluid volume, ensuring accurate test results. The pressure gauge provides real-time monitoring of test pressure, effectively preventing excessive pressure from damaging the equipment or injectors, ensuring safer and more reliable operation.
Non-Dismantling Fleaning Function: Utilizing a dedicated adapter, the fuel injectors can be cleaned directly without the need for disassembly, offering a convenient and efficient additional cleaning option.
Wide Application: Supports testing and cleaning of nearly all gasoline vehicle fuel injectors on the market. Specifically suitable for testing fuel injectors of Honda, Yamaha, Suzuki, and SYM motorcycles.
Operating Instructions
Tips:
Use professional engine carbon cleaning fluid as the ultrasonic cleaning fluid to ensure optimal cleaning results and equipment safety.
When performing injector tests, select professional testing fluid and avoid corrosive liquids; anhydrous alcohol is recommended.
After use, promptly drain all liquids from the equipment and clean it properly to extend the machine’s lifespan.
Operating Instructions
Ultrasonic Cleaning:
Clean the exterior of the injectors with cleaning solution before turning on the machine.
Once the exterior of the injectors is free of dirt, place the injectors into the ultrasonic cleaning tank.
Add cleaning solution, ensuring it does not exceed the connection port of the pulse pipeline.
Connect the pulse signal line and select the first ultrasonic cleaning function to start.
Allow the ultrasonic cleaning function to run for deep cleaning.
After cleaning, recover the remaining cleaning solution.
Fuel Injector Testing:
Secure the injector onto the main unit, and test the injector’s resistance, short circuit, and current.
Fill half of the glass tube with the testing solution.
Perform leakage, spray mode, and flow rate tests on the flow bench.
Finally, place the injector back on the flow bench and retest all functions.
