AUTOOL AST618 Brake Fluid Exchanger Features

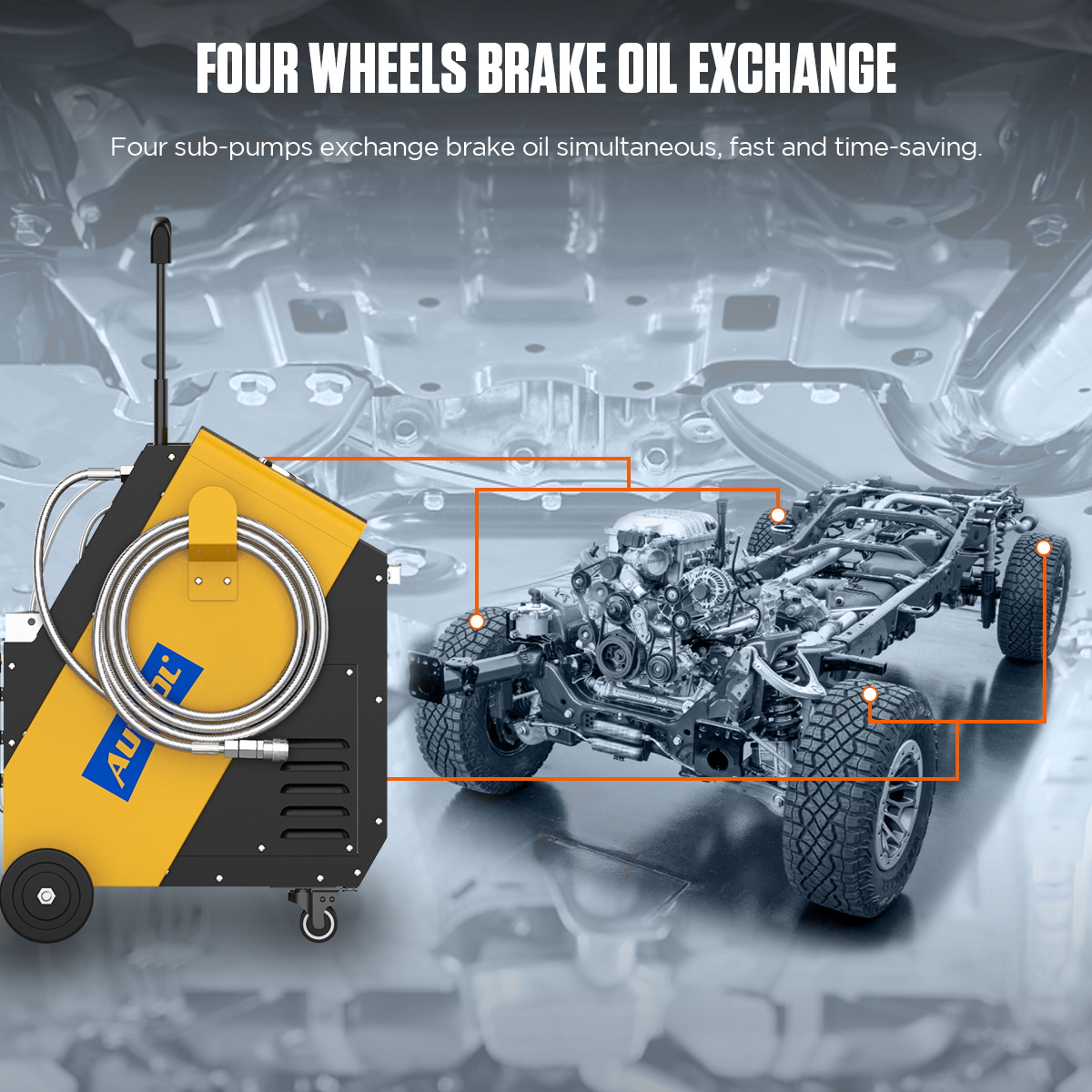

Four Wheels Oil Can Be Exchanged Simultaneously: Working pulse, working pressure, and working time can be adjusted. The configuration of the pressure gauge and digital display meter can easily observe the working parameters.
Pulse one-button Replacement: Only one person to operate. It allows for easy brake oil changes. The kit can change oil from two sub-pumps simultaneously. Once you set the working environment, the entire process is automatic. You don’t need to worry about being too busy.
Intelligent Liquid Level Monitoring: The AUTOOL AST618 brake oil exchanger is equipped with a built-in pressure monitoring device. When the new fluid container runs out of brake fluid during filling, the device automatically stops, preventing air from entering the brake (braking) system pipelines.
Considerate Design Details: The AUTOOL AST618 brake oil exchanger does not need to exhaust the air in advance, the suction pipe can separate the moisture in the air, avoid mixing with the oil, and ensure the quality of the oil.
Stainless Steel Large-Capacity Oil Pot Design: Oil pot volume 3L Corrosion-resistant,collision-resistant, and durable.
Wide Application: Equipped with 17 different types of adapters and toolboxes, suitable for various car models in Europe, America, Asia, etc.
Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. If you have any problems, please contact us, and we will respond within 24 hours!
Operating Instructions
Step 1: Raise the car to a suitable height so the drive wheels are not on the ground.
Step 2: Connect the device’s four oil ports to the car’s brake cylinder. Then, loosen the exhaust screw on the brake cylinder to allow the oil to flow out.
Step 3: Pour 5 liters of new brake fluid into the equipment’s fuel filler port. Then, find the matching connector to connect to the brake master cylinder’s fuel filler.
Step 4: Connect to 12V car power and turn on the power switch button.
Step 5: Press the Vacuum Switch button.
Step 6: Press the Fuel Switch button to change the brake fluid.
Step 7: During the oil changing process, look at the car brake oil tank mouth, if the refueling is too slow, press the acceleration switch button on the device to accelerate refueling; if it’s too fast, press the deceleration switch button to slow down.
Step 8: After the oil change, drain the used oil from the equipment’s tank completely. If not fully emptied, it can damage the vacuum pump and prevent further oil change operations.
