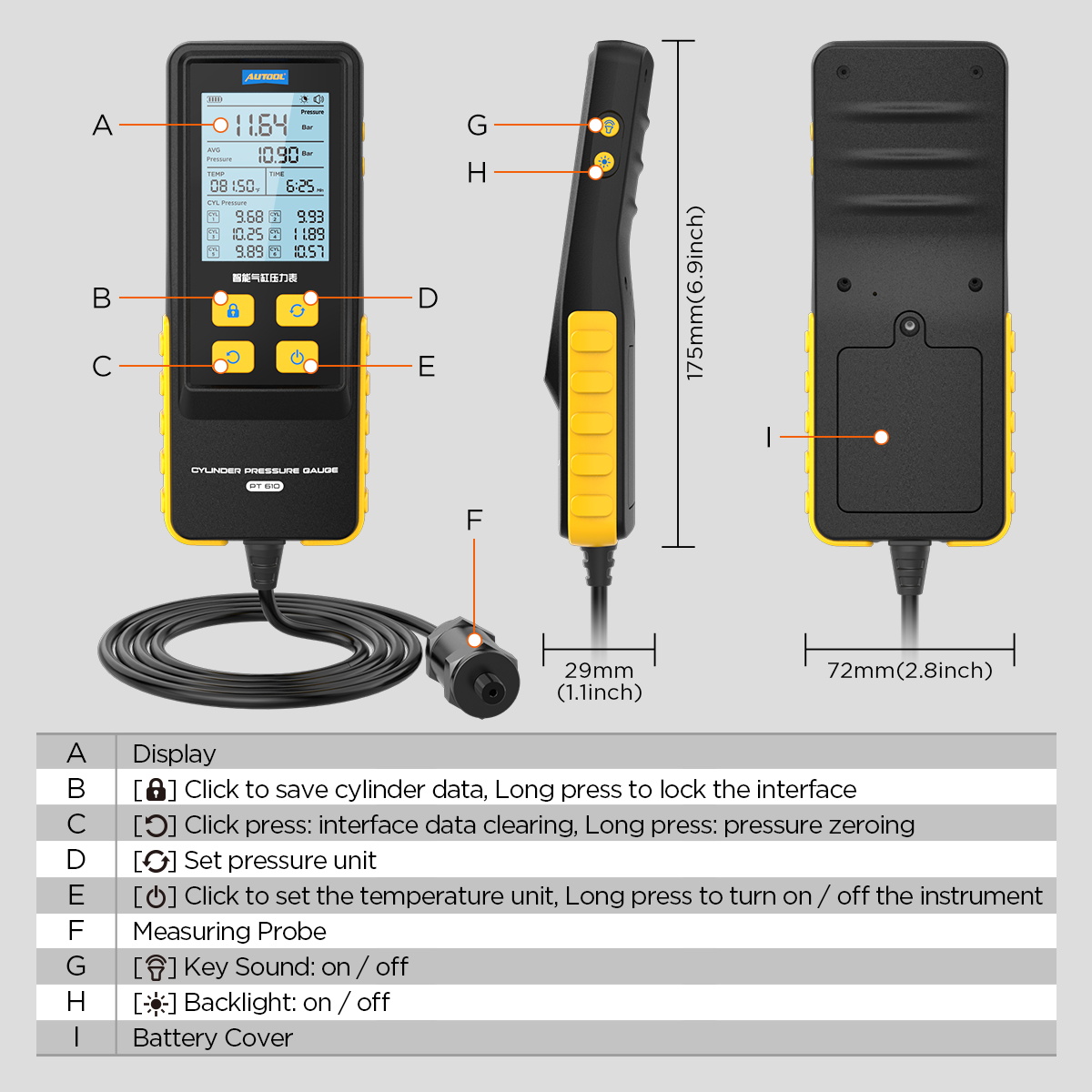

PT610 Cylinder Pressure Gauge

The AUTOOL PT610 works as a smart cylinder pressure tool. It has a clear 2.8-inch screen to show real-time pressure, average pressure, and cylinder temperature. It saves data for up to 6 cylinders so you can easily compare and check them.

PT610 Cylinder Pressure Gauge Features

Measurement accuracy: Measures values up to two decimals for high precision.

Intelligent Digital Gauge: Clear 2.8-inch backlit screen shows data clearly with 0.01 resolution. Tracks real-time pressure, average pressure, cylinder temperature, and test time.

Data Saving: Save and lock up to 6 test sets. Easily record and check cylinder data. Includes quick-release valve for fast pressure reset.

Selected riveted copper material: Resists rust and corrosion for long-lasting use. Comes with copper fittings and a strong 78.7-inch rubber hose that handles pressure, heat, and bending.

Easy Instant Read: Switch between PSI, Bar, and KG/CM² units with buttons. Measures 0-426.6 PSI / 0-29.4 BAR / 0-30 KG/CM². Temperature units toggle between °C and °F.

Three-year warranty: For damages caused by non-human factors, AUTOOL promises to provide free replacement parts within three years. If you have any requests, please feel free to contact us, and we will respond promptly within 24 hours.

Operating Instructions

Step1: Remove the spark plug;

Step 2: Connect the adapter for the vehicle model to the measuring probe;

Step 3: Reset the pressure value to zero before testing;

Step 4: Connect the measuring probe to the engine;

Step 5: Start engine to rotate the crankshaft;

Step 6: The pressure gauge displays measured pressure.
