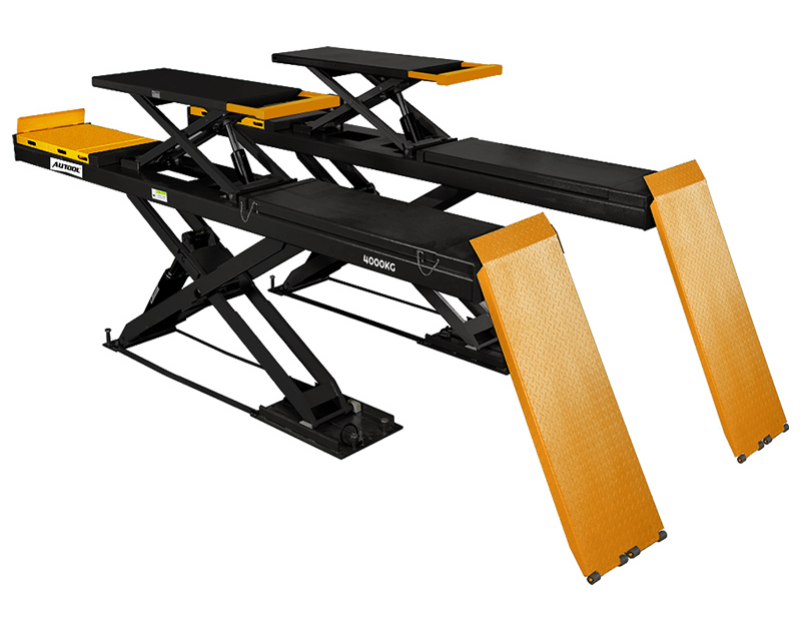

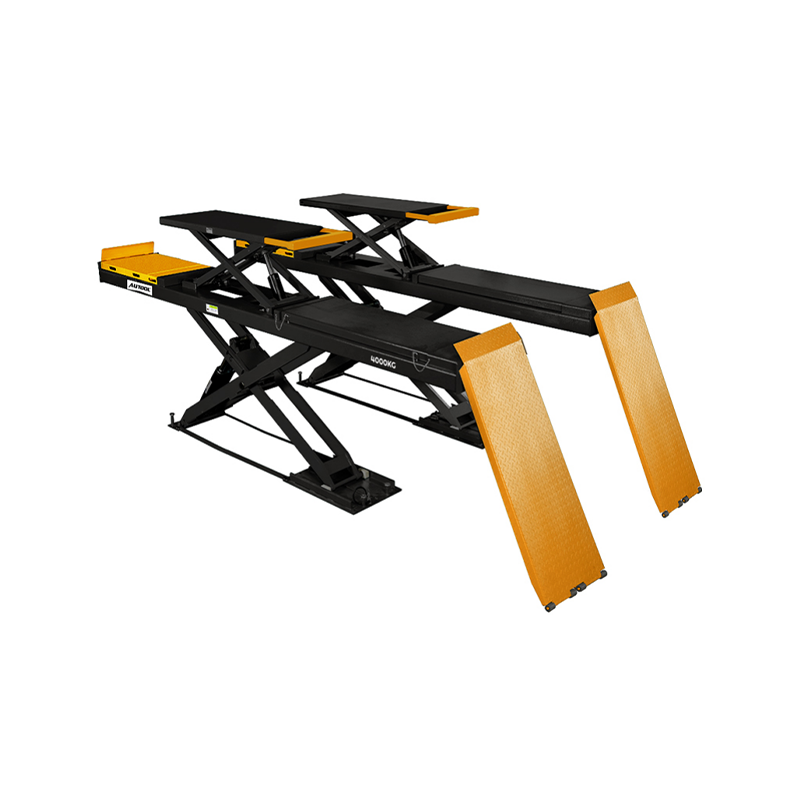

ATL-4SHU 4-Ton Ultra-Low Profile Integrated Primary & Assist Four-Wheel Alignment Scissor Lift

AUTOOL ATL-4SHU 4-Ton Ultra-Low Profile Scissor Lift with 190 mm entry height for wheel alignment and vehicle repair.

190 mm ultra-low entry height, suitable for low-clearance and sports vehicles.
Six hydraulic cylinders, dual hydraulic synchronization, and triple mechanical safety protection ensure reliable operation.
Both primary and assist lifts feature 4-ton capacity. The assist scissor lift supports single-side extension, with…
Alloy steel X-frame structure, precision laser/CNC cutting, and wear-resistant moving components provide durability and long service…

Minimum Height: 190mm
Main Platform Length: 4520mm
Auxiliary Platform Length: 1540-1750mm

ATL-4SHU 4-Ton Ultra-Low Profile Integrated Primary & Assist Four-Wheel Alignment Scissor Lift at a glance

Minimum Height: 190mm
Main Platform Length: 4520mm
Auxiliary Platform Length: 1540-1750mm
Auxiliary Platform Width: 600mm

Overview

ATL-4SHU 4-Ton Ultra-Low Profile Integrated Primary & Assist Four-Wheel Alignment Scissor Lift

Designed for four-wheel alignment, low-clearance vehicles, and premium repair facilities, this ultra-low profile integrated primary and assist scissor lift platform combines alignment capability with general repair functions. The 190 mm lowered height reduces vehicle loading difficulty, while the six-cylinder hydraulic system and primary/assist lifting structure provide stable performance for both alignment and maintenance operations.

Features:

190 mm ultra-low entry height, suitable for low-clearance and sports vehicles.

Six hydraulic cylinders, dual hydraulic synchronization, and triple mechanical safety protection ensure reliable operation.

Both primary and assist lifts feature 4-ton capacity. The assist scissor lift supports single-side extension, with dual-side extension available as an option.

Alloy steel X-frame structure, precision laser/CNC cutting, and wear-resistant moving components provide durability and long service life.

Specifications
