PT630Fuel Pressure Gauge

AUTOOL PT630 Automobile Fuel Pressure Gauge Features

Advanced Digital Measurement System: Boasts an extensive measuring range with precise two-decimal-place readings, ensuring high accuracy across diverse applications.

Premium Construction: Features corrosion-resistant riveted copper fittings for robust durability, paired with a reinforced rubber hose designed to withstand pressure, temperature fluctuations, and kinking.

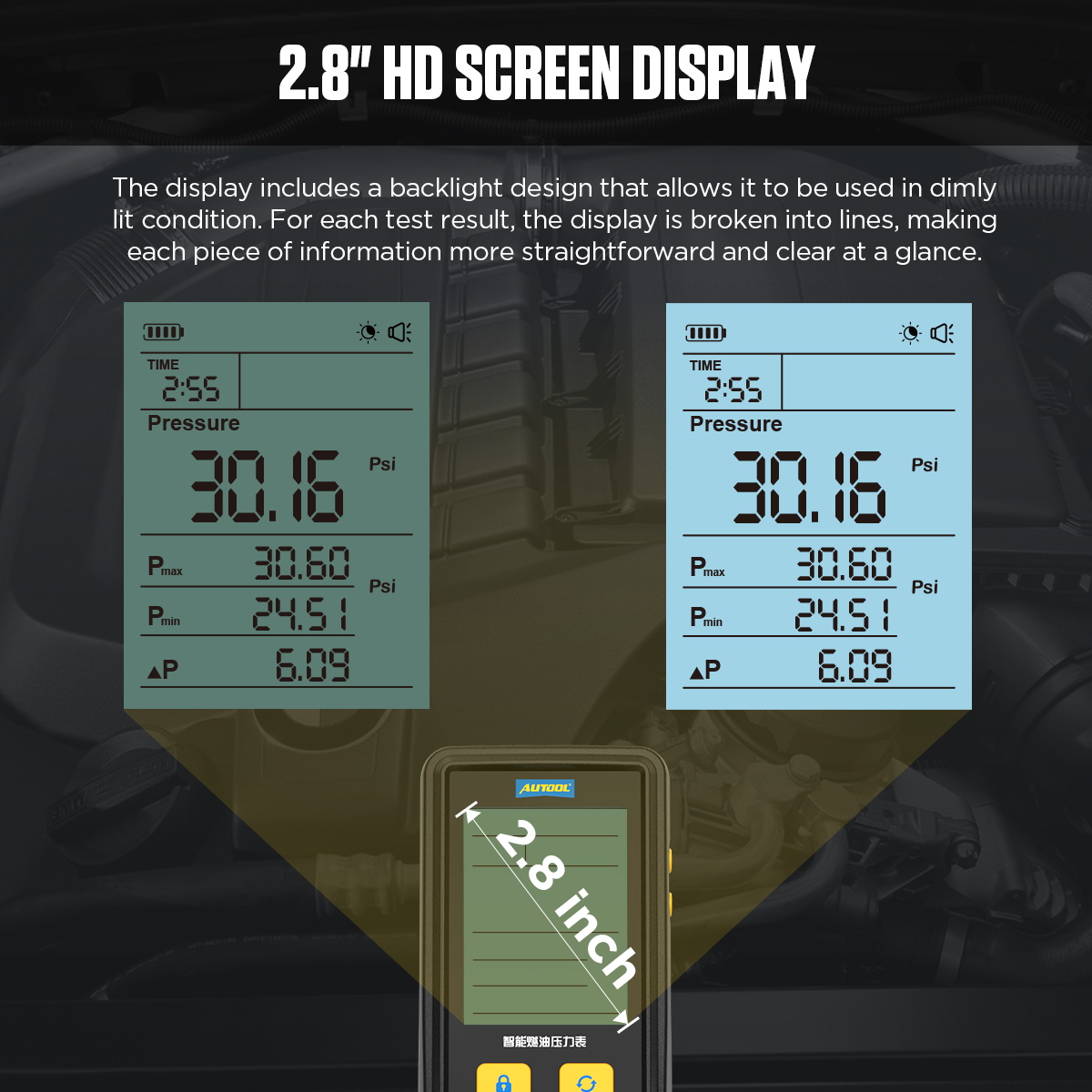

2.8″ High-Definition Display: Equipped with backlighting for optimal visibility in low-light settings, this screen organizes test results into clear, readable lines for quick data interpretation.

Intelligent Data Management: Stores up to six sets of test data with interface lockout functionality, enabling convenient recording and retrieval of historical measurements.

Multi-Functional Pressure Gauge: Offers real-time pressure, average pressure, fuel oil temperature, and measurement duration tracking. The 2.8″ backlit display provides 0.01 resolution for crisp, accurate readings.

Instant Unit Conversion: Allows seamless switching between PSI (0-426.6), KG/CM² (0-30), and Bar (0-29.4) via push-button controls. Includes Celsius/Fahrenheit temperature unit selection for global usability.

Three-year warranty: For damages caused by non-human factors, AUTOOL promises to provide free replacement parts within three years. If you have any requests, please feel free to contact us, and we will respond promptly within 24 hours.

Operating Instructions

Step 1: Disassemble the engine fuel pipeline interface.

Step 2: Connect the adapter for the vehicle model to the measuring probe.

Step 3: Reset the pressure value to zero before testing.

Step 4: Connect the measuring probe to the engine.

Step  5: Start the engine.

Step 6: Pressure gauge displays measured pressure.
