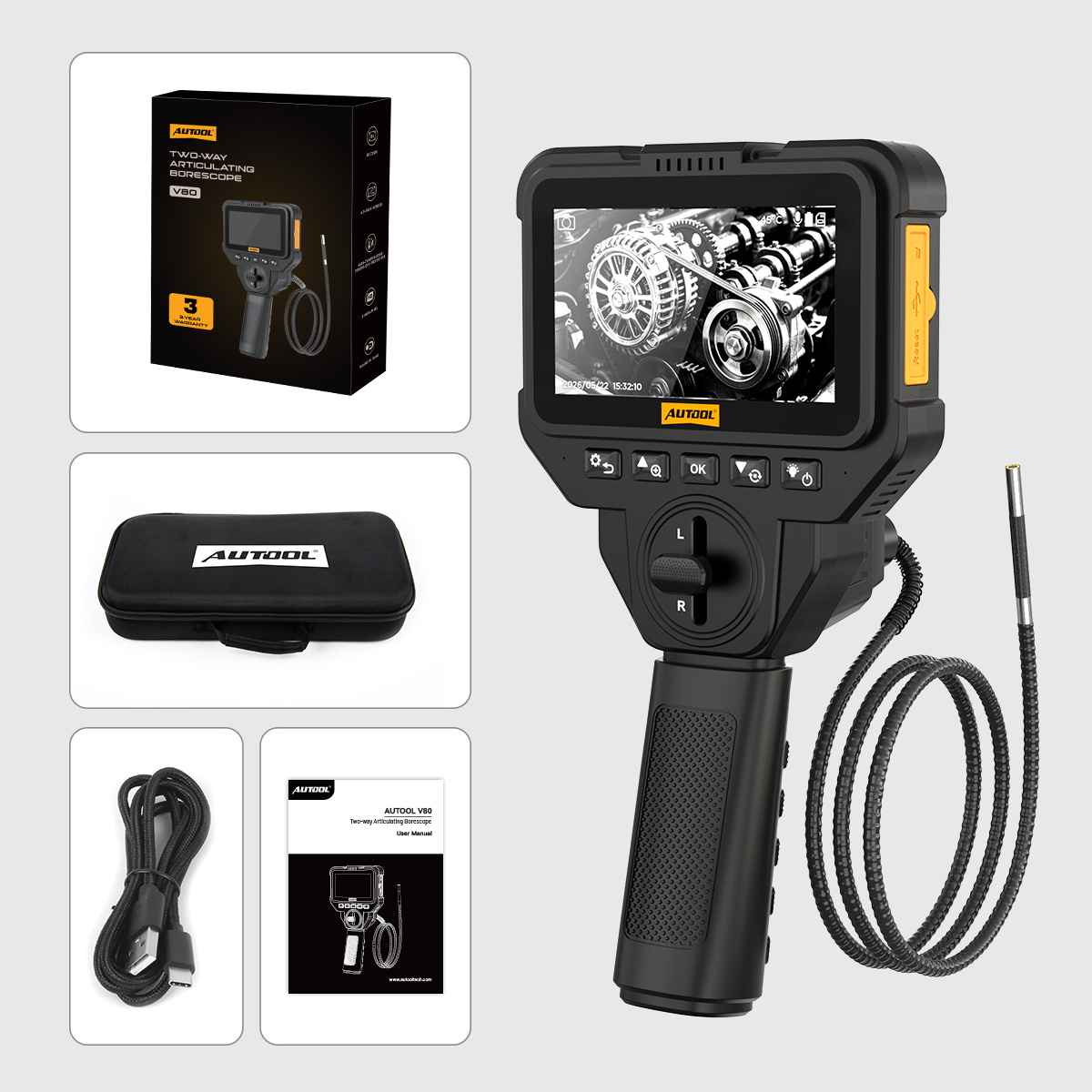

V80220° Articulating Borescope – Ø6.25mm lens

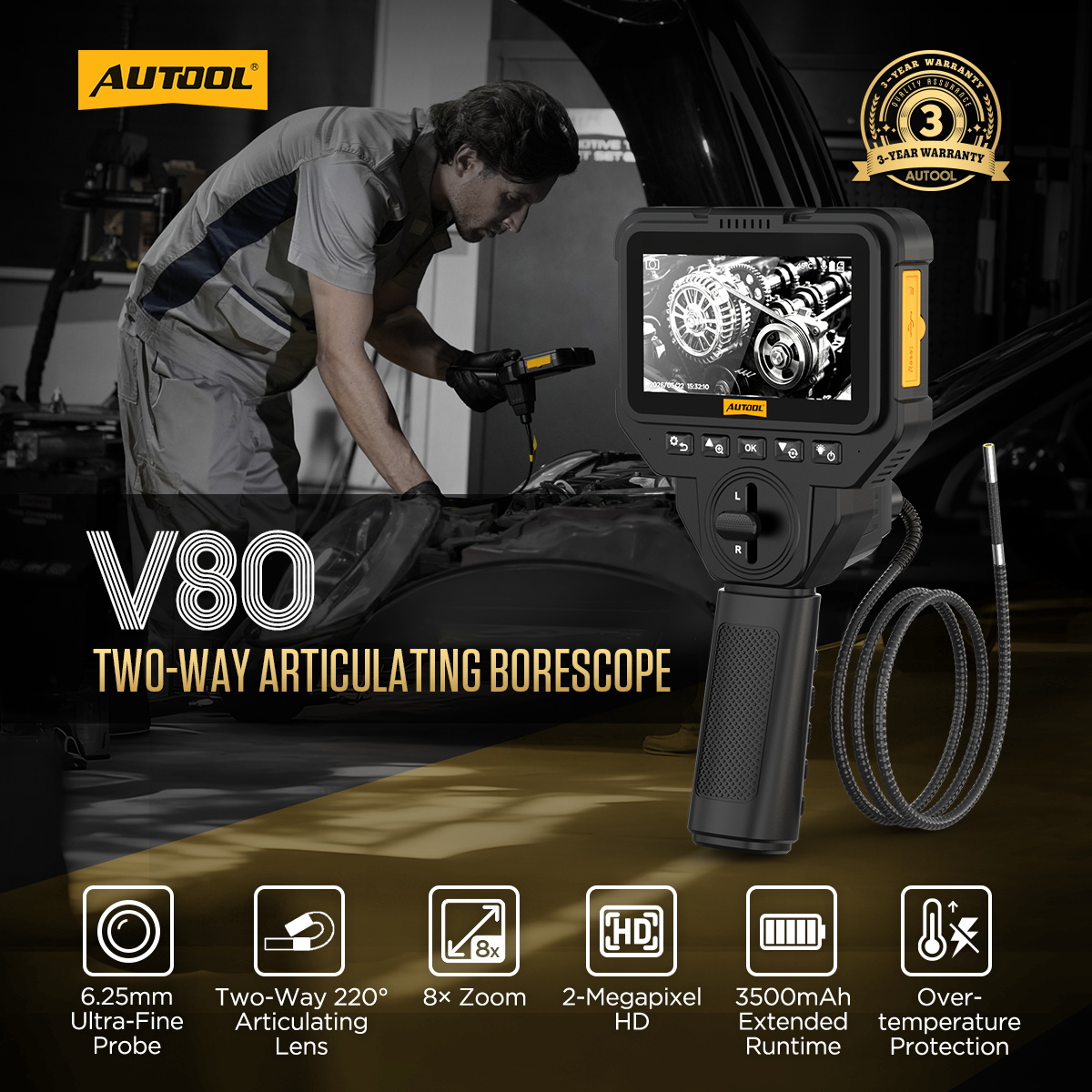

AUTOOL V80 borescope camera with 220° articulation, 2MP imaging, and 8x zoom for engine and pipe inspection.

  • Ultra-Slim 6.25mm Probe
  • 2MP HD Imaging
  • 32GB TF Storage Card
  • IP67 Waterproof & Dustproof Lens
  • 14-Language Menu
Display screen
4.3inches
Camera resolution
1920×1080P
Memory card
32GB

V80 at a glance

Display screen
4.3inches
Camera resolution
1920×1080P
Memory card
32GB
Flexible hose length
1m

Overview

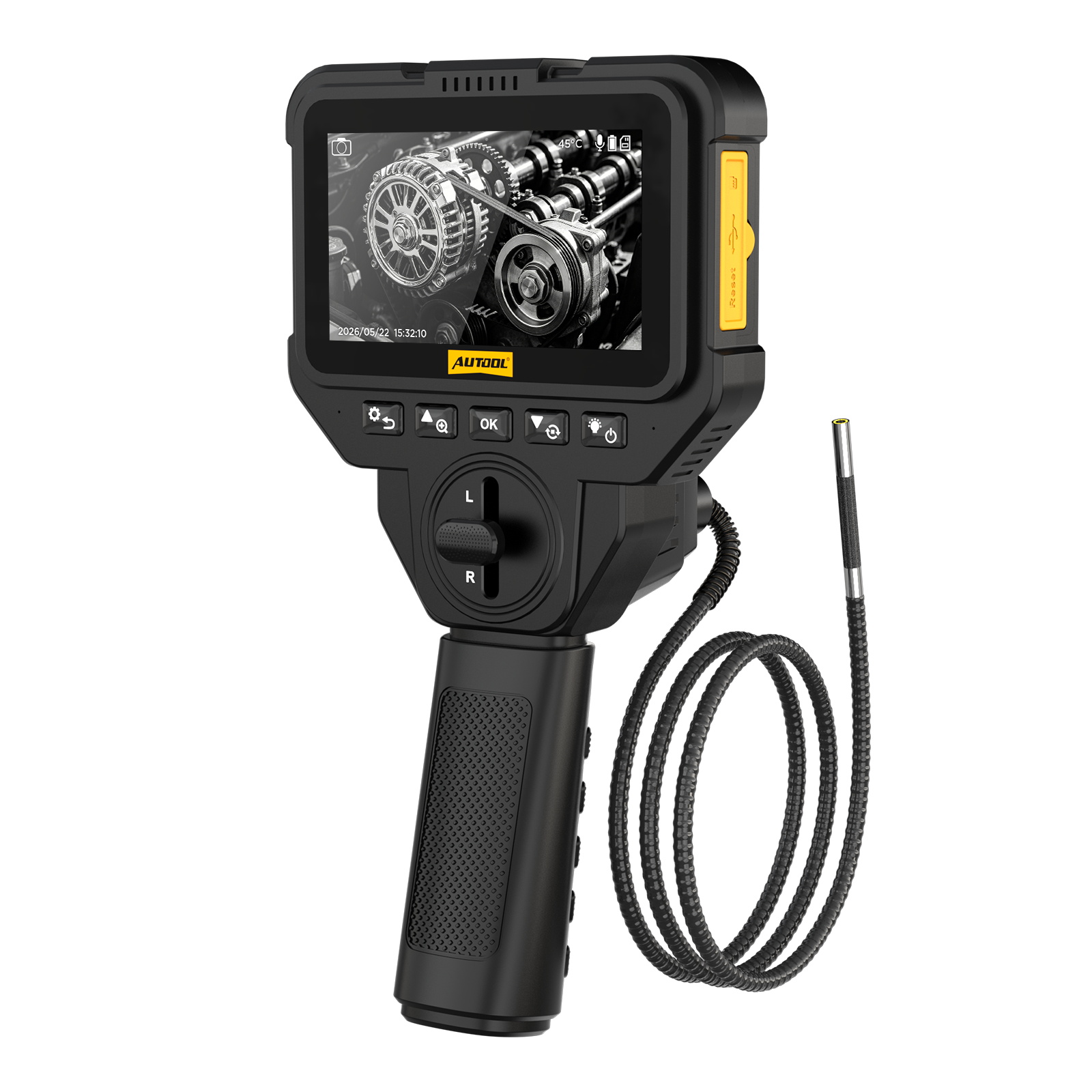

V80 220° Articulating Borescope – Ø6.25mm lens

No app required. Featuring an ultra-slim 6.25mm probe and a 4.3" HD color screen, the V80 delivers instant inspection right out of the box. The lens articulates 220° in two directions, allowing flexible access into tight, curved spaces like engine cylinders, evaporators, combustion chambers, exhaust pipes, wall cavities, and HVAC ducts. With a 2MP camera and 8x zoom, inspect critical issues such as corrosion, blockages, and cracks without engine disassembly or part damage.

AUTOOL V80 Articulating Borescope Features:

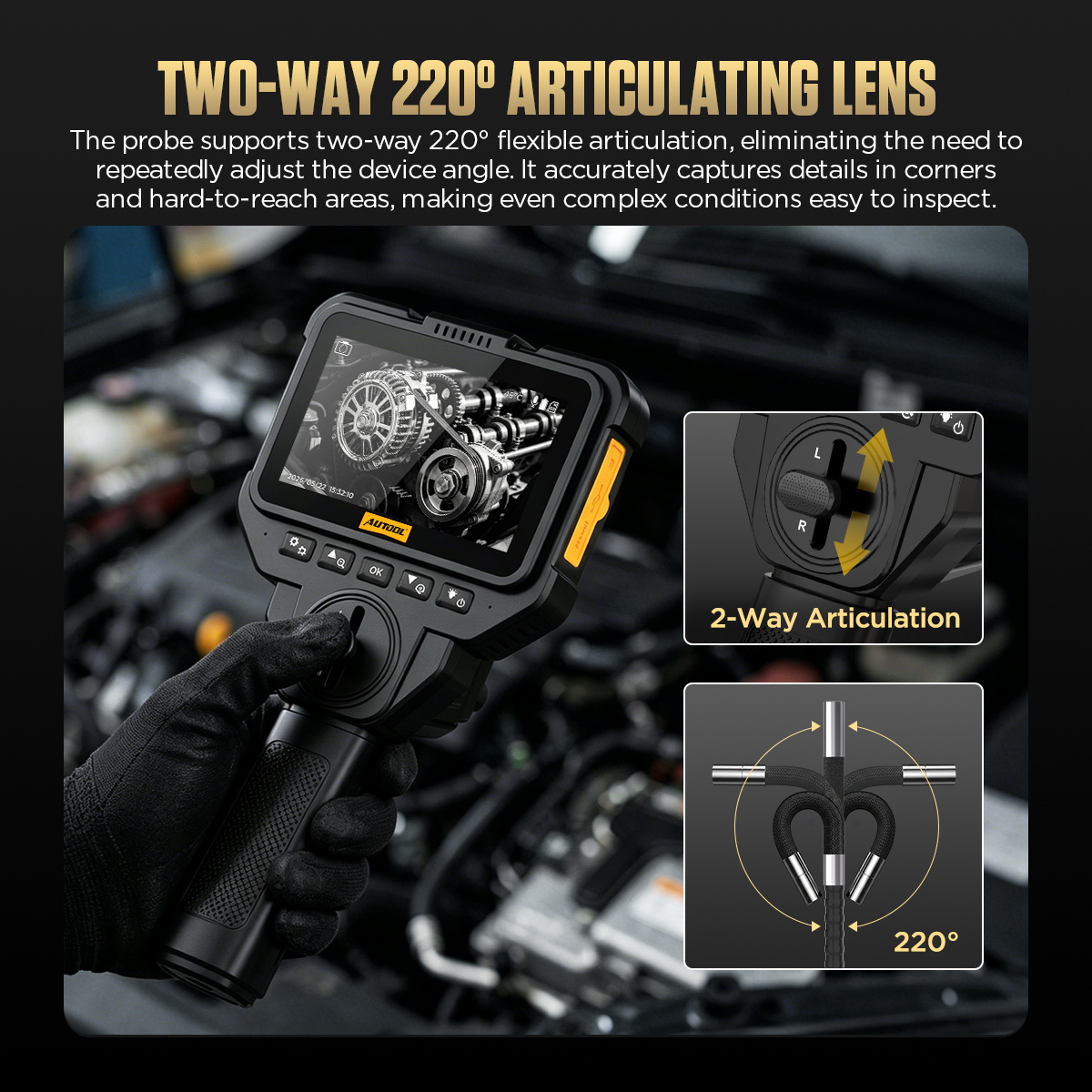

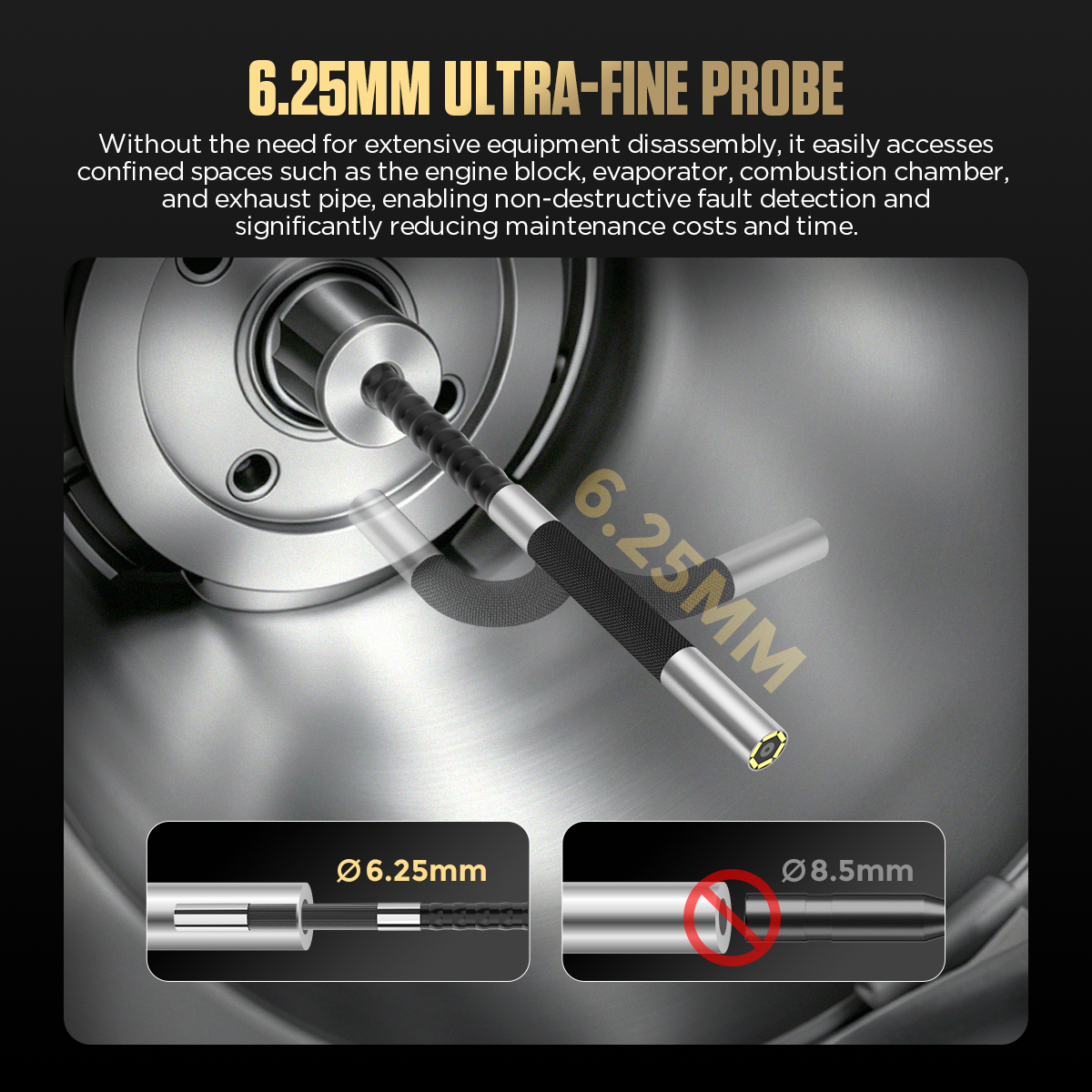

Ultra-Slim 6.25mm Probe: Reaches deep into curved, narrow spaces without extensive disassembly; 220° bi-directional articulation captures corner and dead-angle details effortlessly.

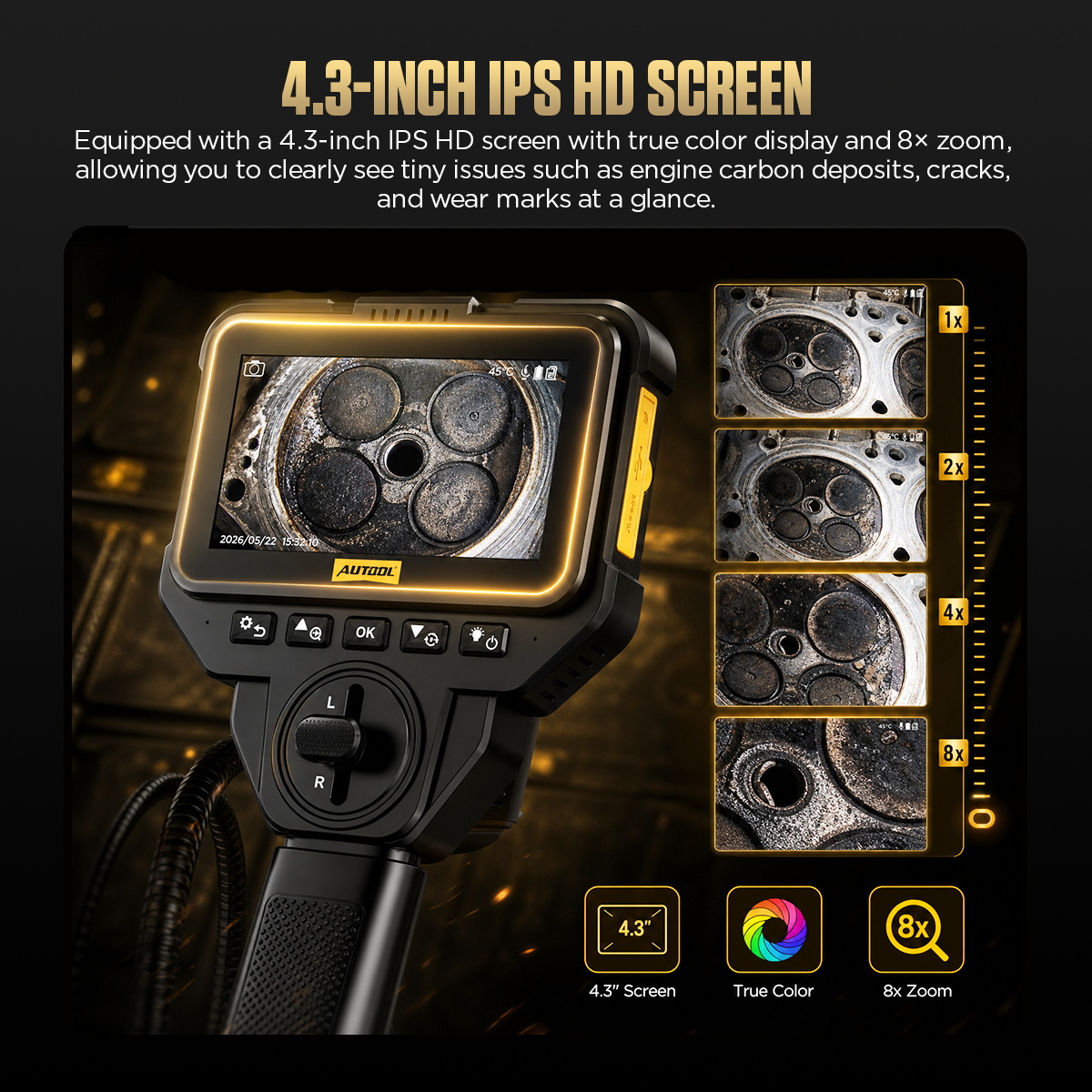

2MP HD Imaging: True-to-life color reproduction with 8x zoom, making carbon buildup, cracks, and wear clearly visible.

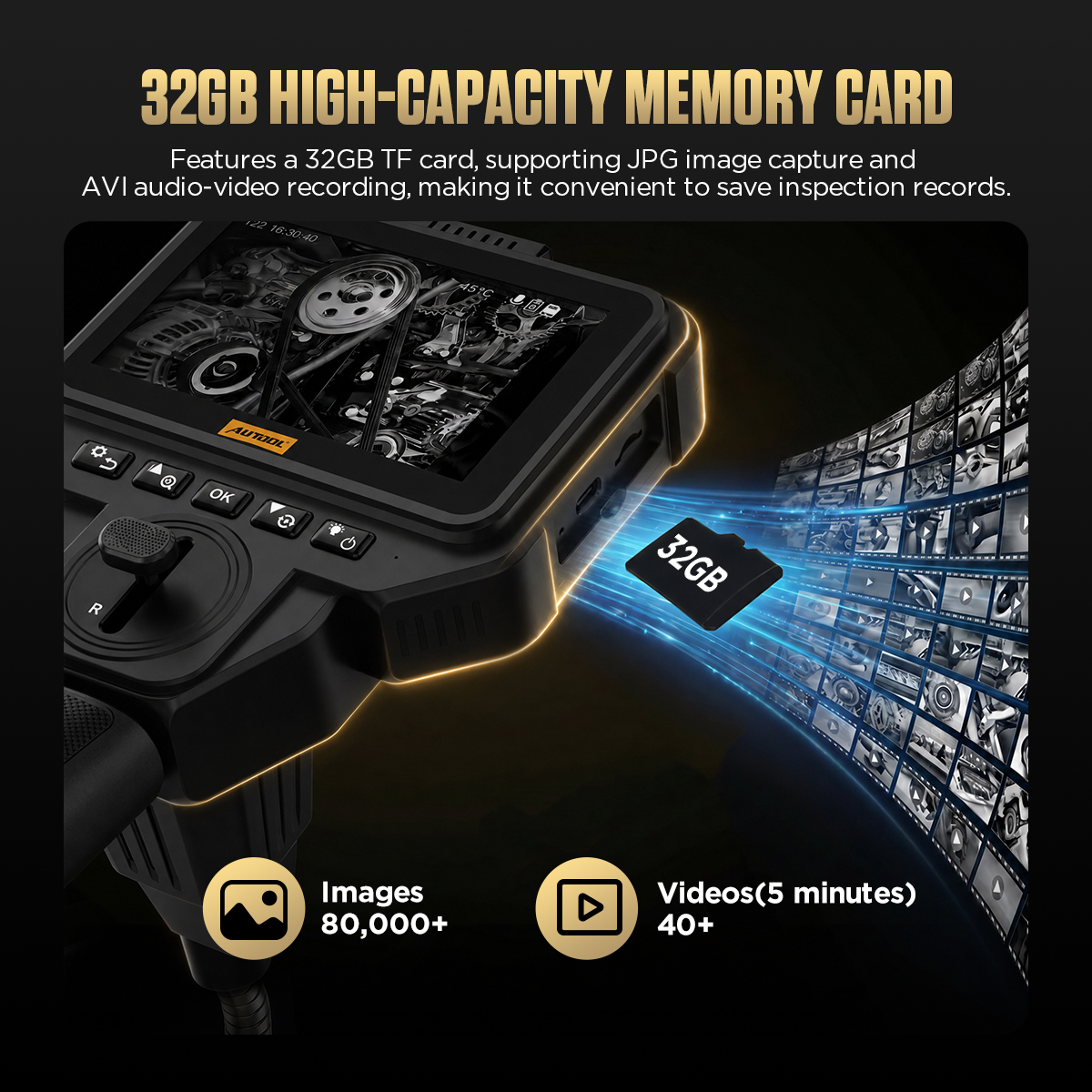

32GB TF Storage Card: Supports JPG photo capture and AVI audio/video recording for easy documentation.

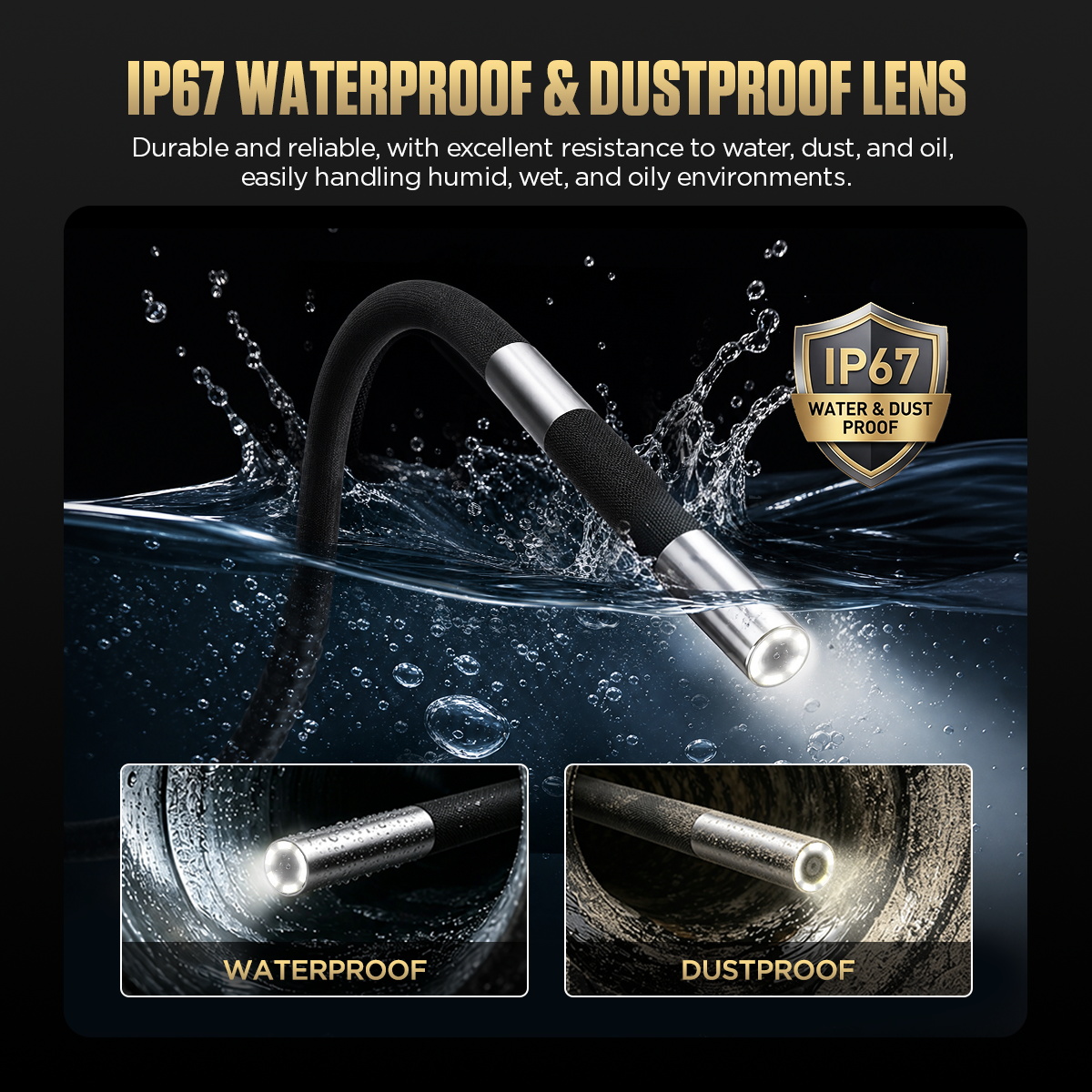

IP67 Waterproof & Dustproof Lens: Excellent water, dust, and oil resistance, built for damp, submerged, or greasy environments.

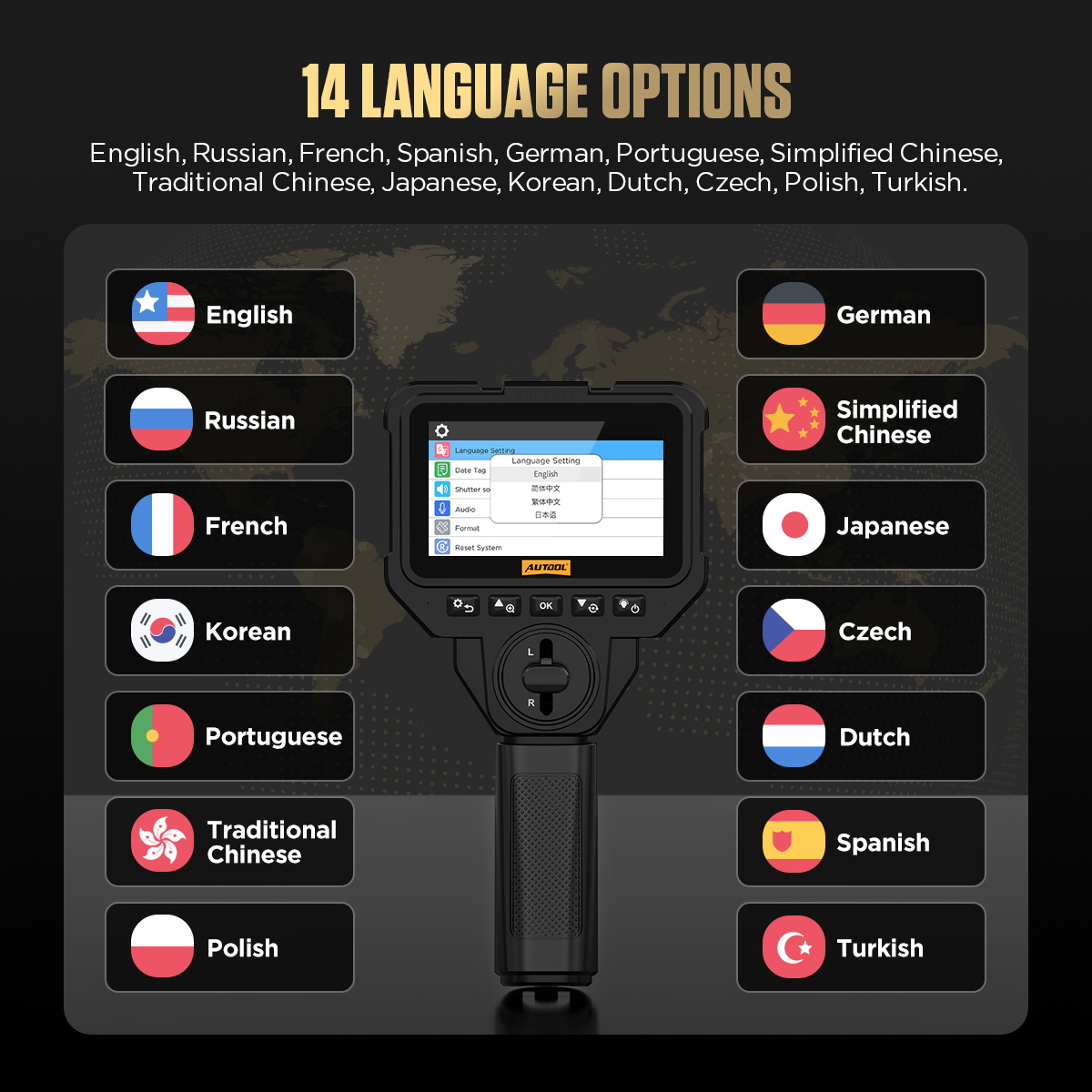

14-Language Menu: Supports Simplified/Traditional Chinese, Spanish, French, German, Czech, Portuguese, Japanese, English, Korean, Russian, Dutch, Turkish, and Polish.

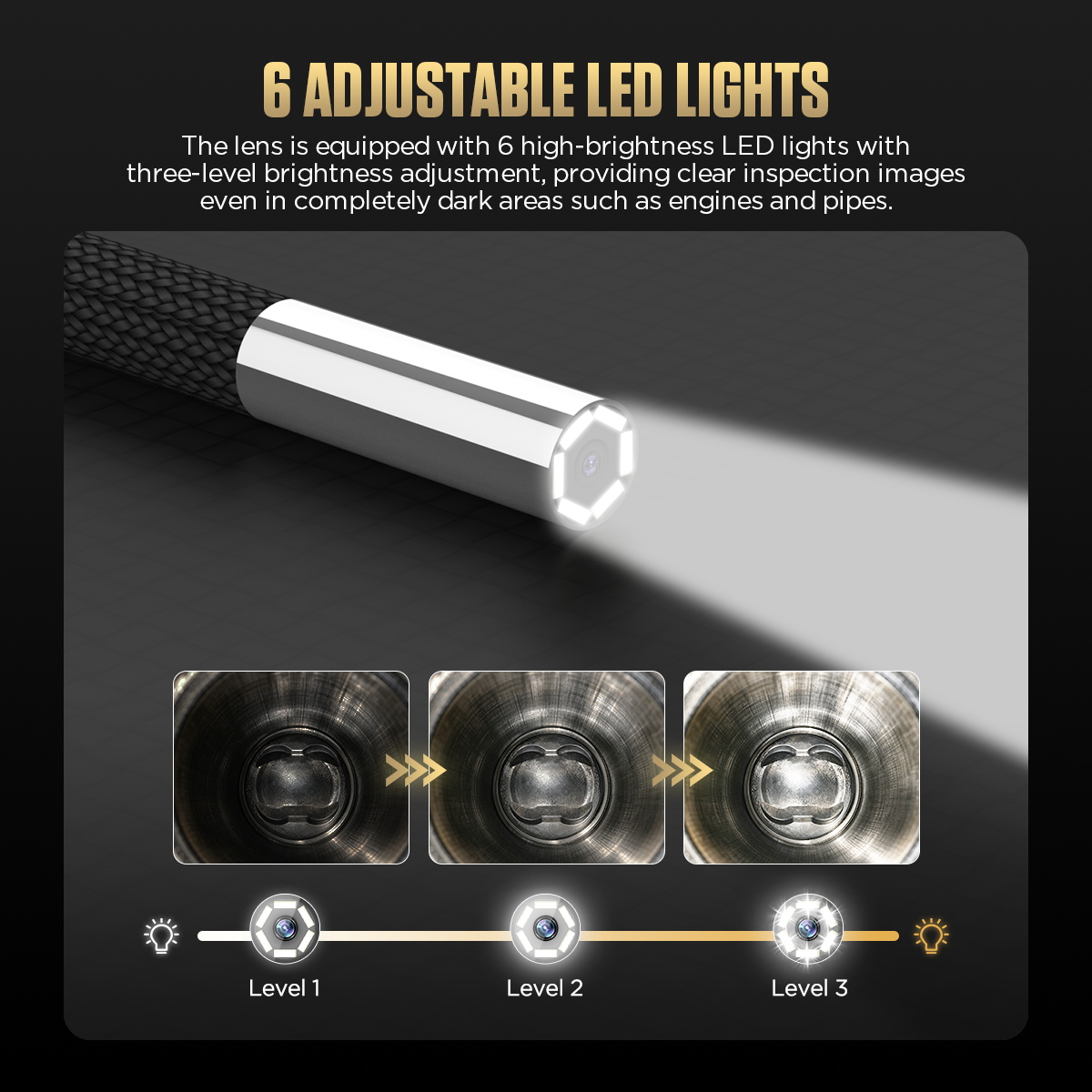

6 Adjustable LED Lights: Three-level brightness adjustment ensures clear imaging even in dark engine bays or pipes.

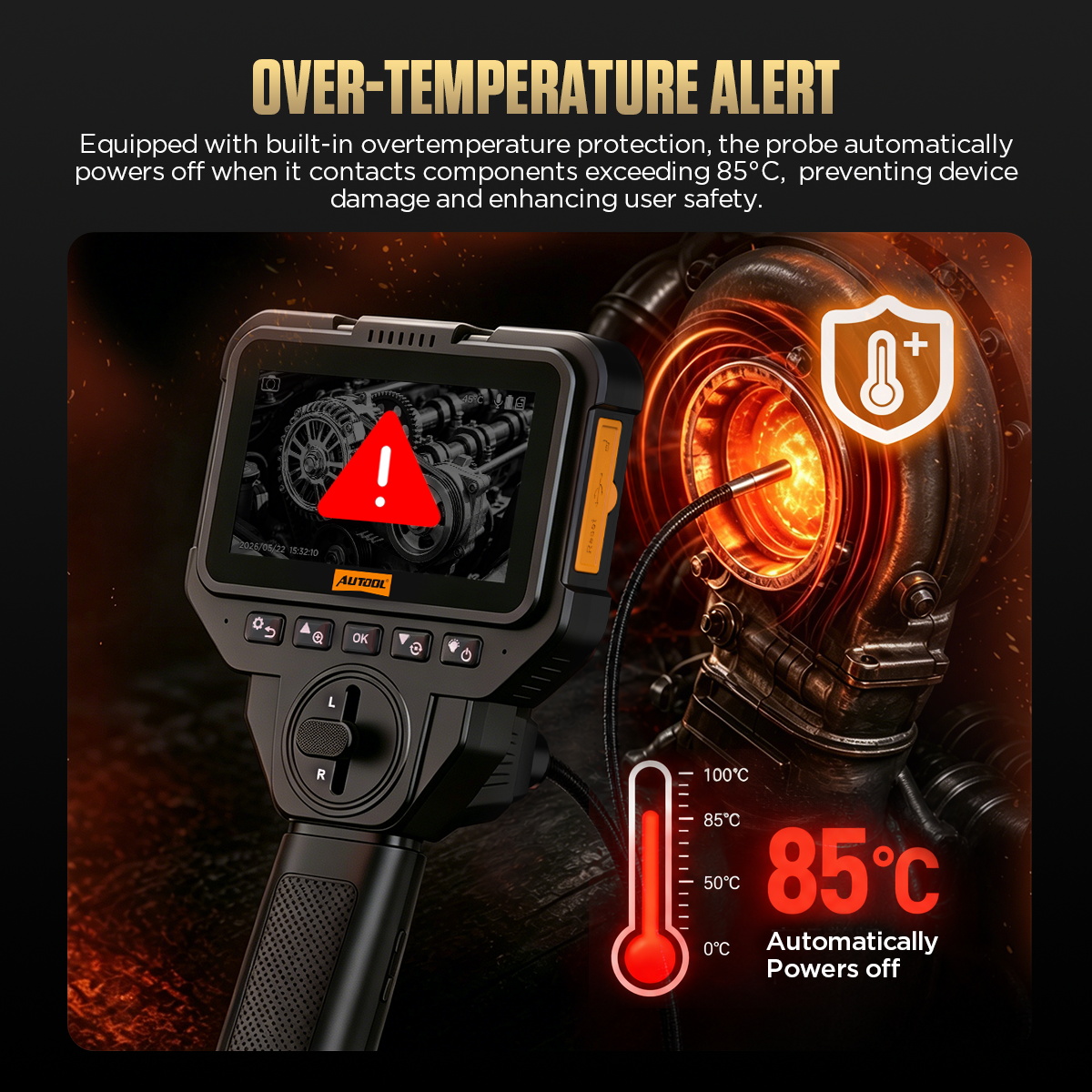

Overheat Protection: Auto power-off above 85°C when probing hot components like engines or exhaust systems to prevent damage and enhance safety.

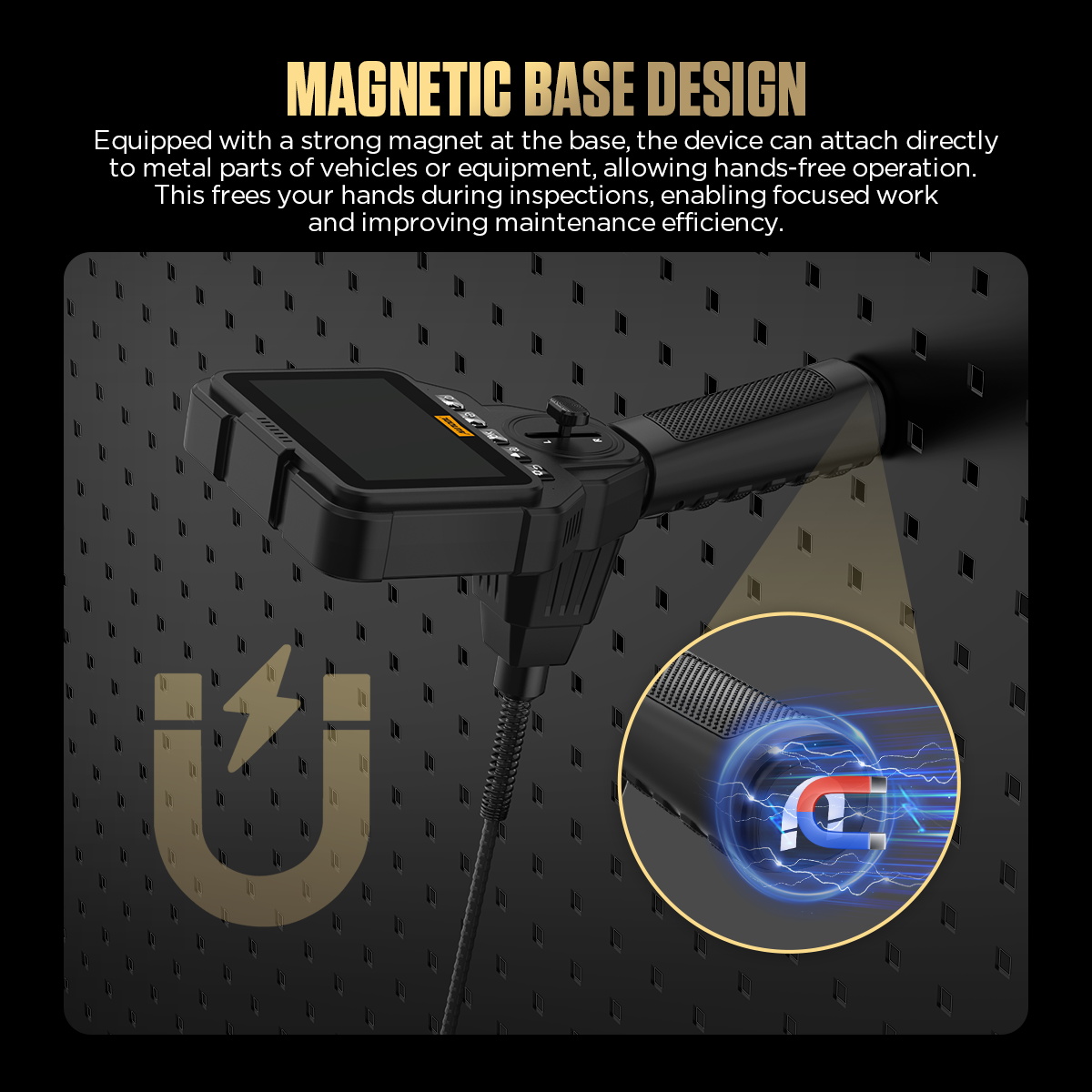

Magnetic Base: Built-in strong magnet attaches directly to ferrous vehicle/equipment parts for hands-free operation, boosting repair efficiency.

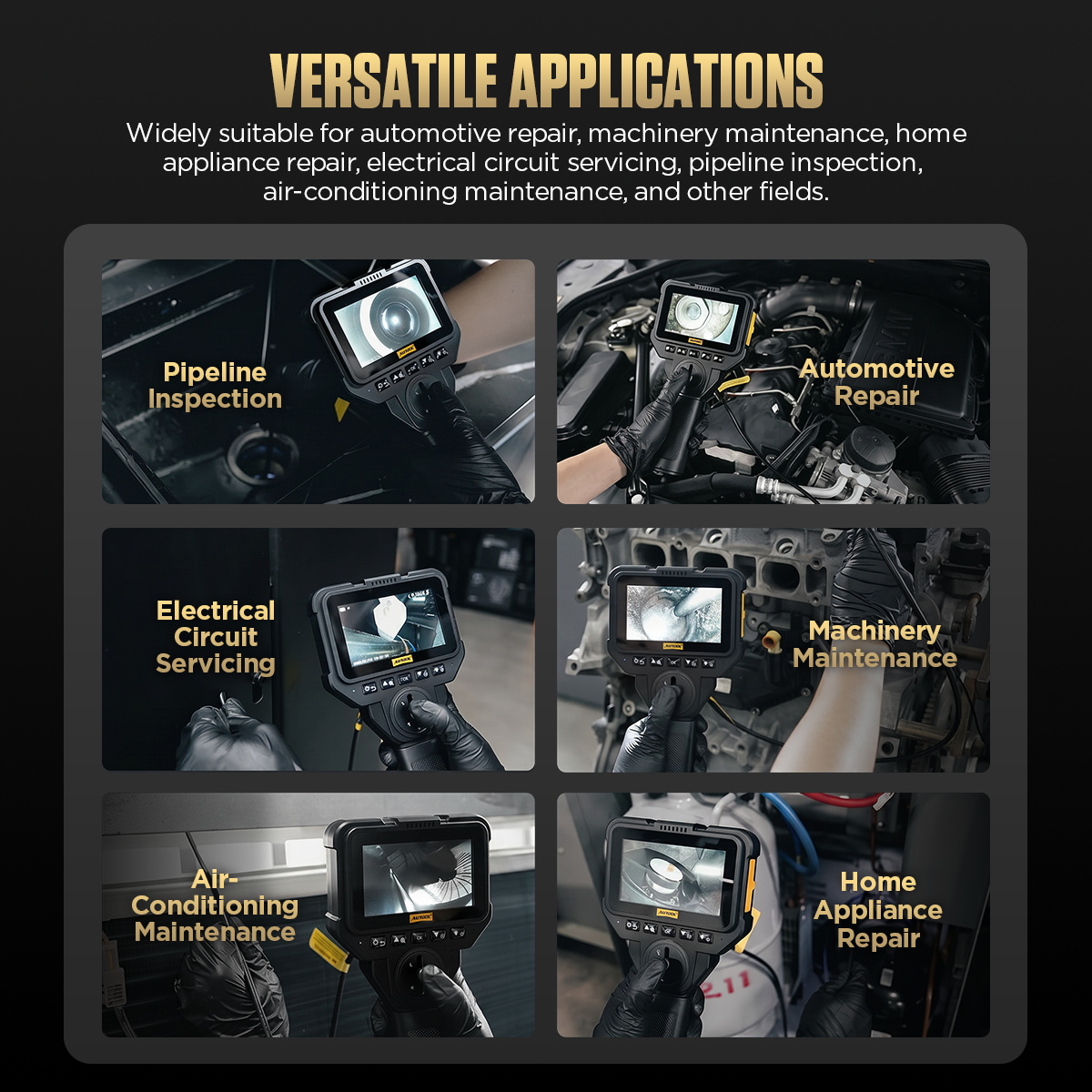

Multi-Scene Application: Widely used in automotive, machinery, appliance, circuit, pipeline, and HVAC inspection.

3-Year Warranty: AUTOOL guarantees free replacement parts within three years for non-human-induced damage. 24-hour rapid response. We are committed to being

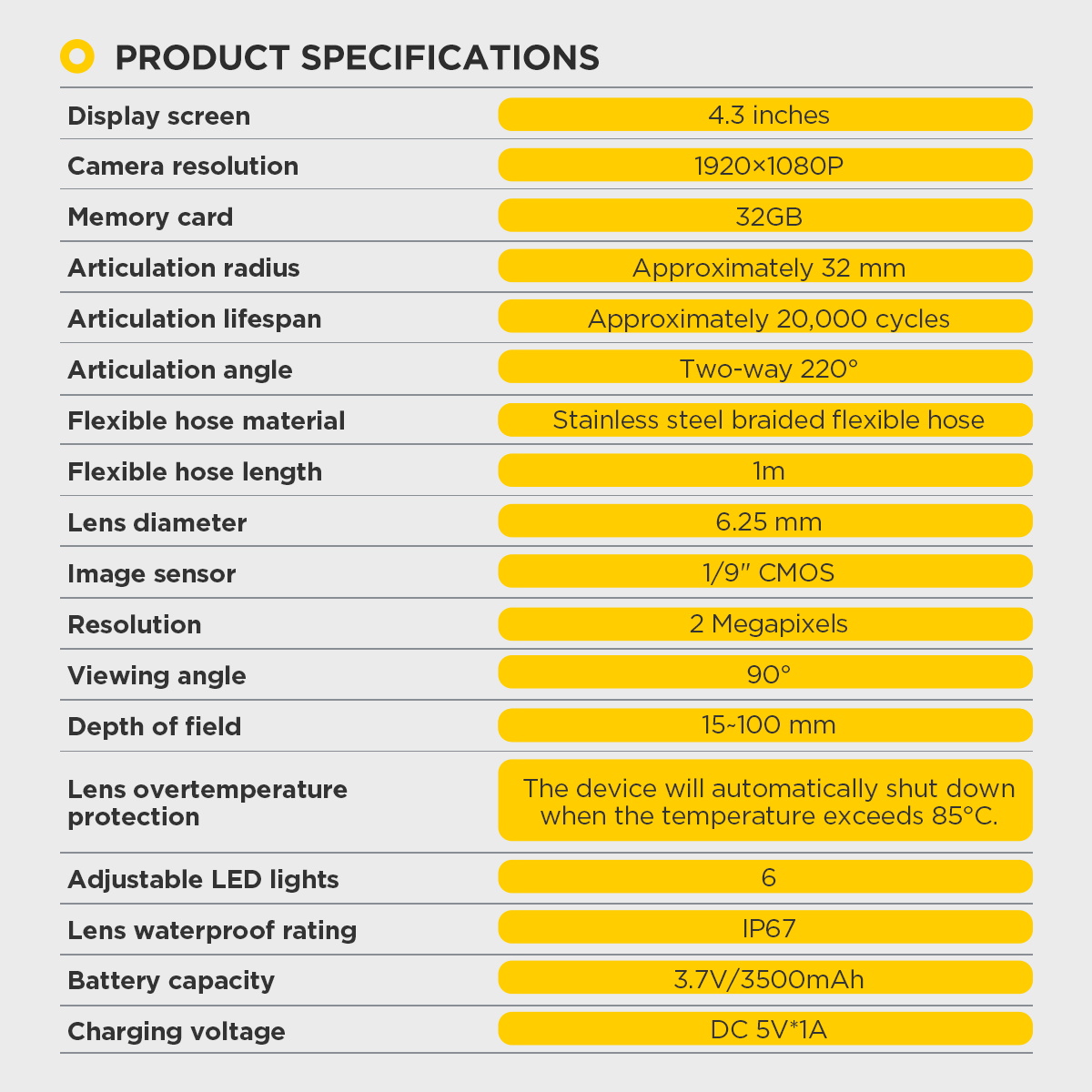

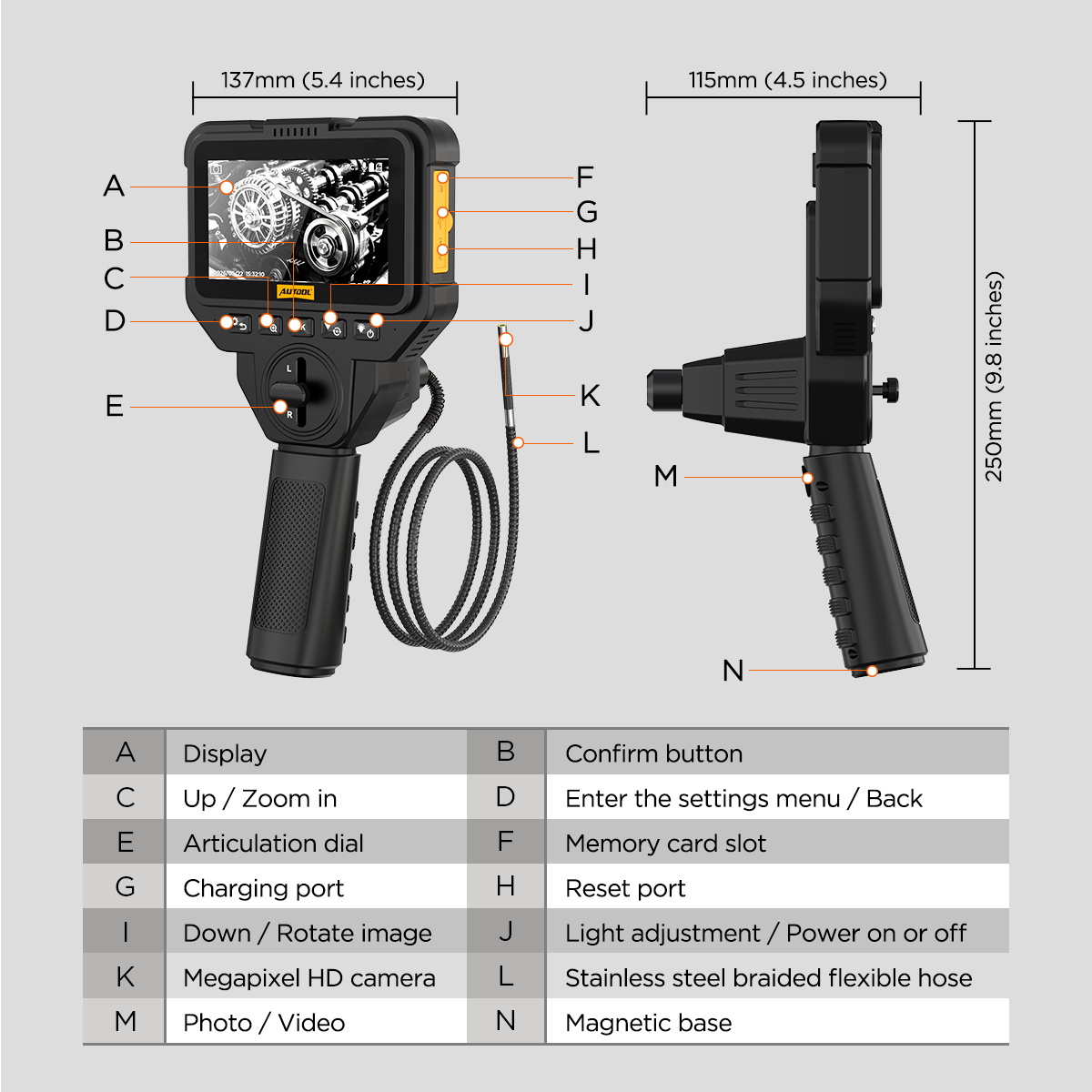

Specifications

Technical data

V80

Display screen
4.3 inches
Camera resolution
1920×1080P
Memory card
32GB
Articulation radius
Approximately 32 mm
Articulation lifespan
Approximately 20,000 cycles
Articulation angle
Two-way 220°
Flexible hose material
Stainless steel braided flexible hose
Flexible hose length
1m
Lens diameter
6.25 mm
Image sensor
1/9”CMOS
Resolution
2 Megapixels
Viewing angle
90°
Depth of field
15~100 mm
Lens overtemperature protection
The device will automatically shut down
when the temperature exceeds 85℃.
Adjustable LED lights
6
Lens waterproof rating
IP67

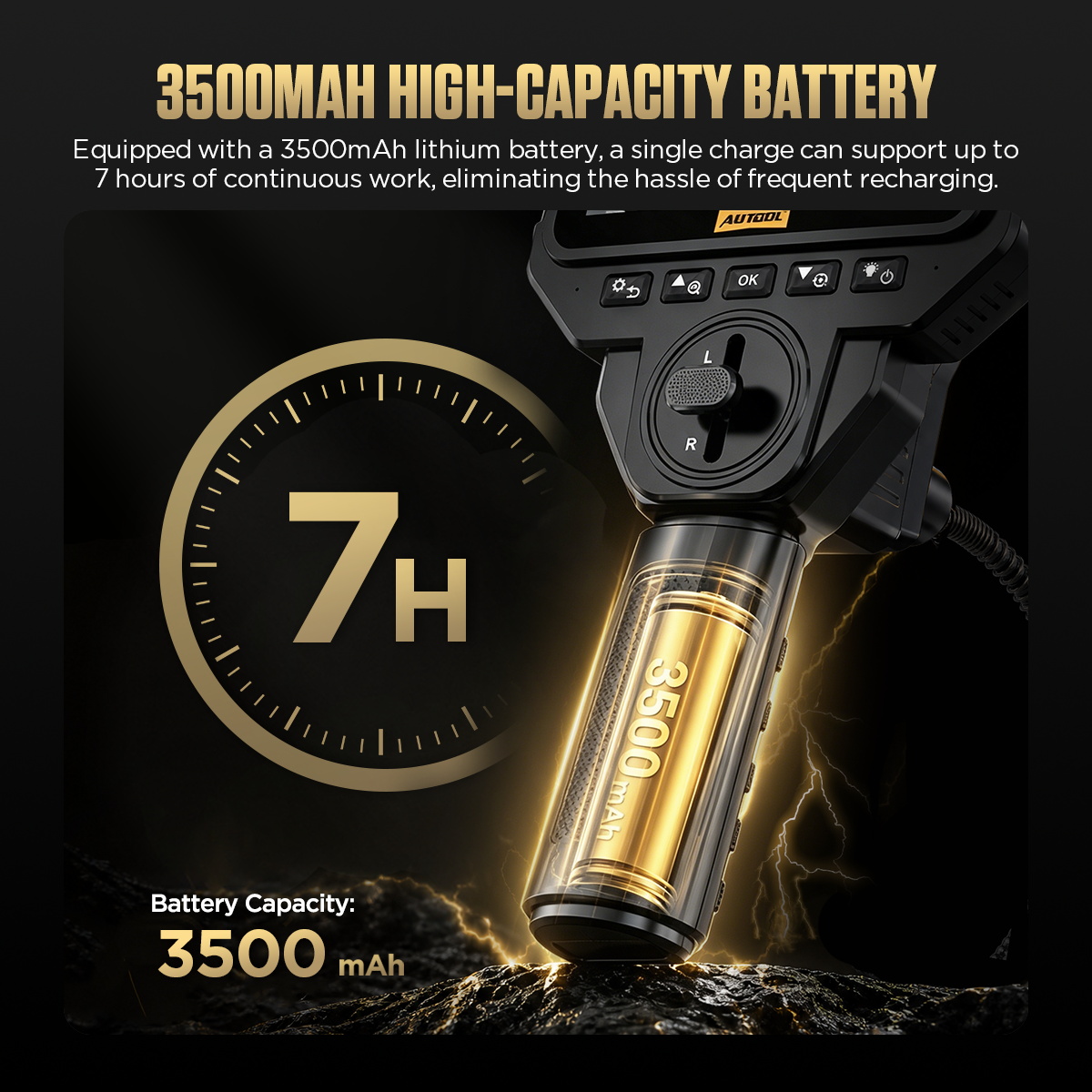

Battery capacity
3.7V/3500mAh
Charging voltage
DC 5V*1A
