ATL-4S 4-Ton Tube-Type Small Platform Scissor Lift
Play video: AUTOOL ATL-4S 4-Ton Scissor Lift | Installation & Setup Guide
Lifting EquipmentNew

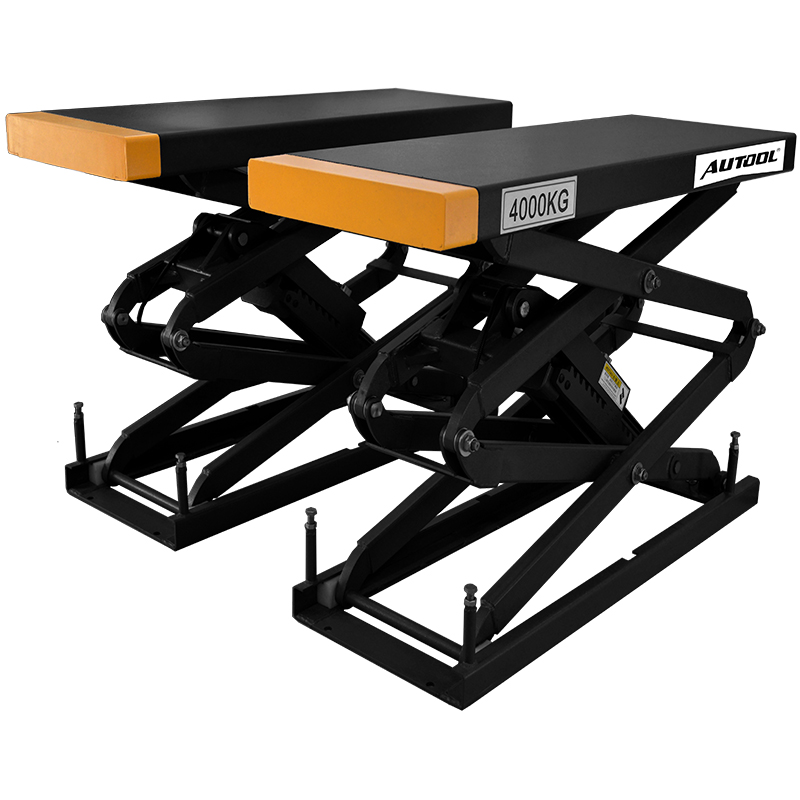

ATL-4S 4-Ton Tube-Type Small Platform Scissor Lift

AUTOOL ATL-4S,a 4-ton small platform scissor lift designed for general repair, quick service, and tire service bays.

  • Hydraulic synchronization, hydraulic locking, and dual mechanical safety locks provide reliable operation, with automatic unlocking during…
  • 24V low-voltage safety control system with hydraulic hose burst protection.
  • CNC-machined cylinders, Japanese/Italian sealing components, and Italian ball valves ensure durability and stable performance.
  • Adjustable platform length; shot blasting and high-temperature powder coating enhance corrosion resistance and wear resistance.
Rated Lifting Capacity
4000kg
Lifting Height
1999mm
Platform Width
565mm

ATL-4S 4-Ton Tube-Type Small Platform Scissor Lift at a glance

Rated Lifting Capacity
4000kg
Lifting Height
1999mm
Platform Width
565mm
Minimum Height
330mm

Overview

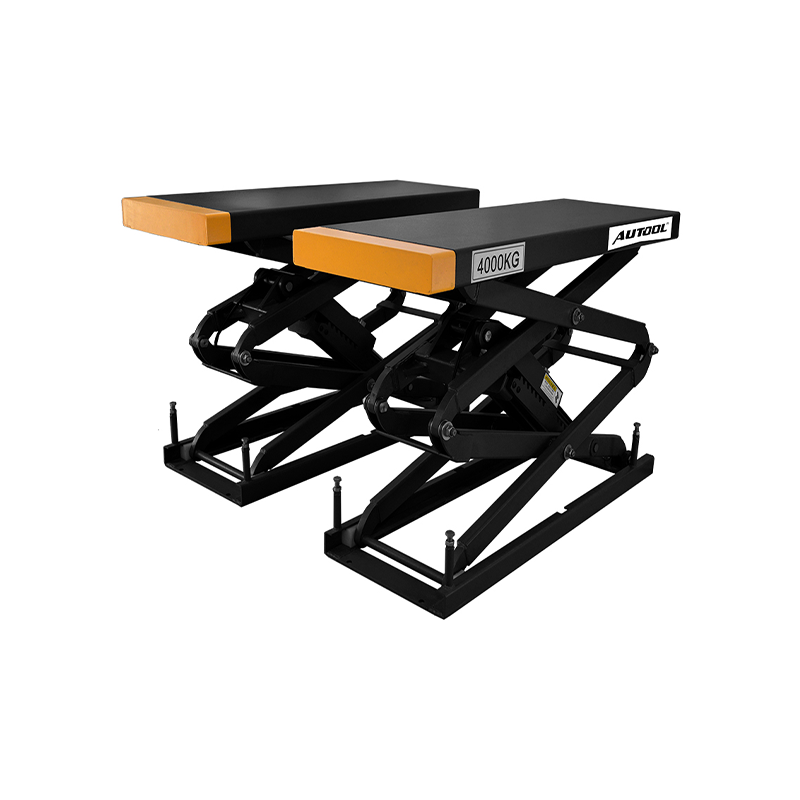

ATL-4S 4-Ton Tube-Type Small Platform Scissor Lift

A 4-ton small platform scissor lift designed for general repair, quick service, and tire service bays. With adjustable platforms to accommodate vehicles of different lengths, it is ideal for professional workshops seeking nearly 2 meters of lifting height while minimizing floor space requirements.

Product Features

Hydraulic synchronization, hydraulic locking, and dual mechanical safety locks provide reliable operation, with automatic unlocking during lowering.

24V low-voltage safety control system with hydraulic hose burst protection.

CNC-machined cylinders, Japanese/Italian sealing components, and Italian ball valves ensure durability and stable performance.

Adjustable platform length; shot blasting and high-temperature powder coating enhance corrosion resistance and wear resistance.

Specifications

Technical data

ATL-4S

Rated Lifting Capacity
4000 kg
Lifting Height
1999 mm
Platform Length
1560-1760 mm, adjustable
Platform Width
565 mm
Minimum Height
330 mm
Motor
380V / 220V / Other options, 3 kW
Air Supply Pressure
0.4-0.6 MPa
Testing Standards
Static Load: 150% / Dynamic Load: 115%

Videos

See the ATL-4S 4-Ton Tube-Type Small Platform Scissor Lift in action

Play video: AUTOOL ATL-4S 4-Ton Scissor Lift | Installation & Setup Guide

AUTOOL ATL-4S 4-Ton Scissor Lift | Installation & Setup Guide
