ATL-3.6SU 3.6-Ton Heavy-Duty Ultra-Low Profile Small Platform Scissor Lift
Play video: AUTOOL ATL-3.6SU Scissor Lift | Installation & Setup Guide
Lifting EquipmentNew

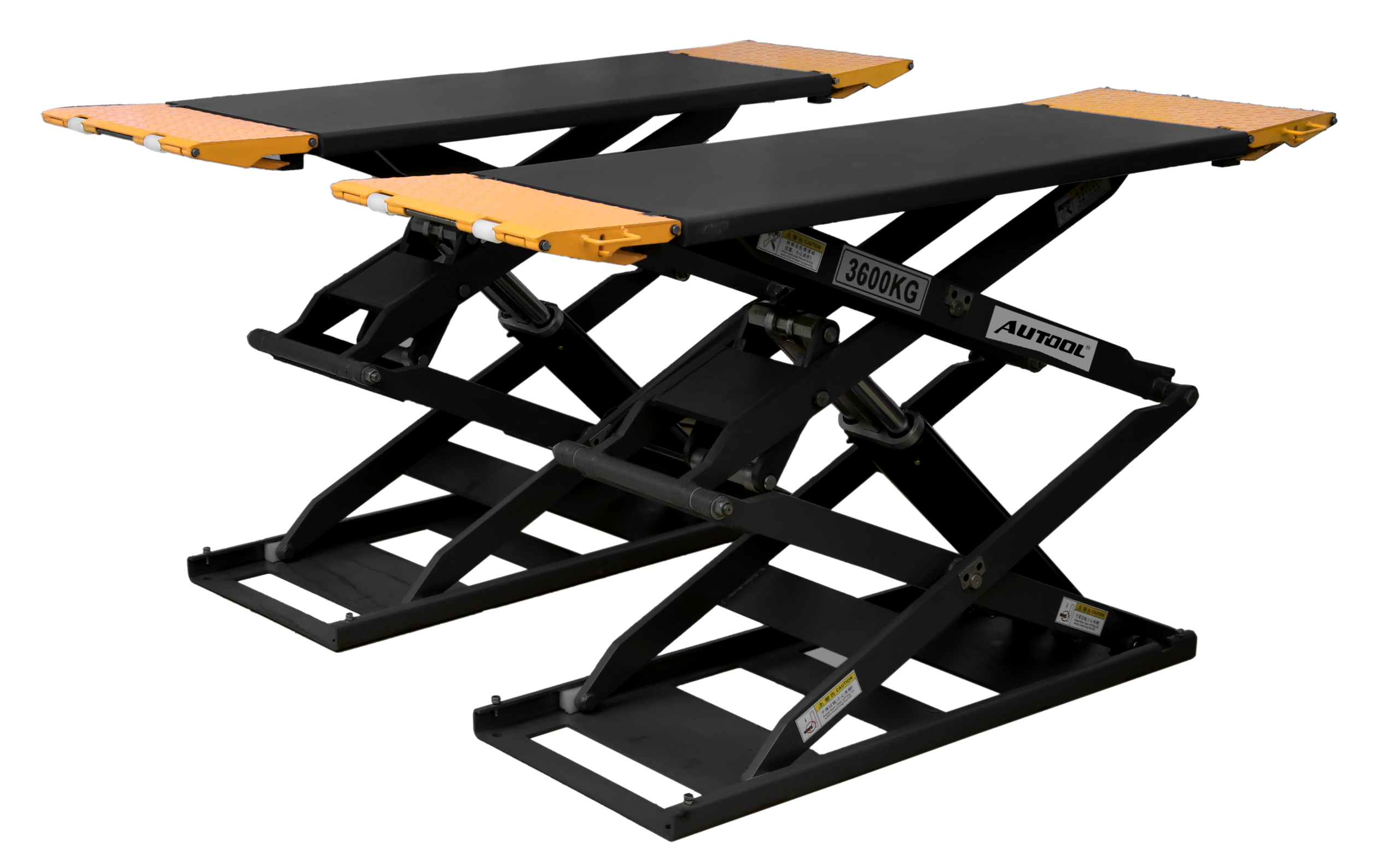

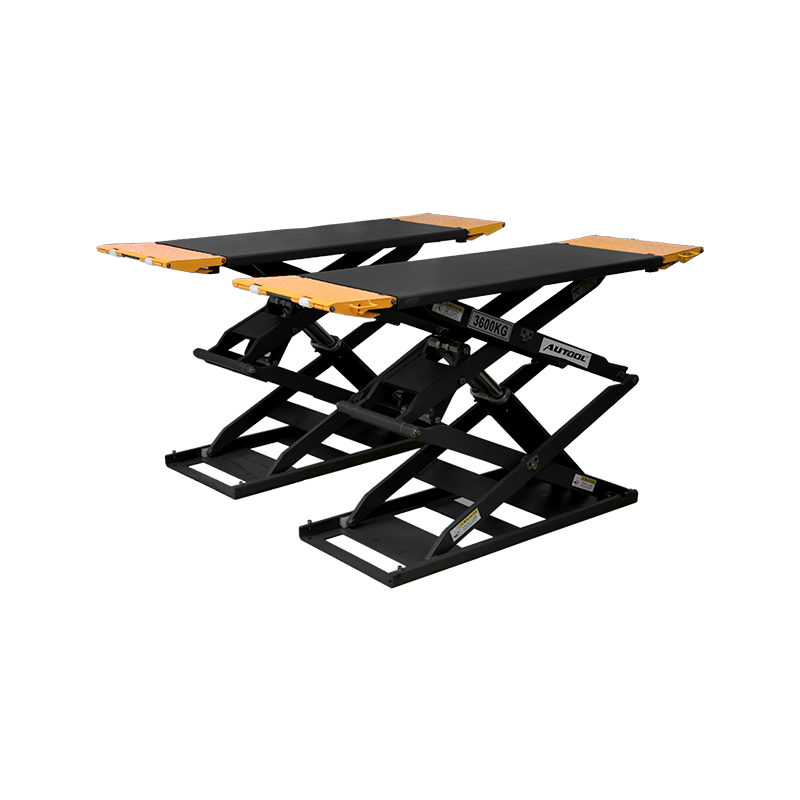

ATL-3.6SU 3.6-Ton Heavy-Duty Ultra-Low Profile Small Platform Scissor Lift

AUTOOL ATL-3.6SU features a 110mm ultra-low profile and extendable ramps for easy access to low-clearance and long-wheelbase vehicles.

  • 110 mm ultra-low profile design enables smoother entry and exit for lowered vehicles.
  • Dual synchronized hydraulic systems, hydraulic locking, and triple mechanical safety protection ensure stable and secure operation.
  • High-strength alloy steel X-frame structure with laser/CNC cutting and precision-engineered hydraulic cylinders.
  • Extendable approach ramps support long-wheelbase vehicles; optional infrared leveling system and anti-foot-pinch protection during lowering are…
Rated Lifting Capacity
3600kg
Lifting Height
1880mm
Platform Length
1480-2090mm

ATL-3.6SU 3.6-Ton Heavy-Duty Ultra-Low Profile Small Platform Scissor Lift at a glance

Rated Lifting Capacity
3600kg
Lifting Height
1880mm
Platform Length
1480-2090mm
Platform Width
630mm

Overview

ATL-3.6SU 3.6-Ton Heavy-Duty Ultra-Low Profile Small Platform Scissor Lift

Designed for low-clearance vehicles, long-wheelbase passenger cars, and professional repair bays, this 3.6-ton ultra-low profile small scissor lift features an ultra-low 110 mm starting height that reduces vehicle entry difficulty. The extendable approach ramps provide compatibility with a wider range of vehicle types.

Product Features

110 mm ultra-low profile design enables smoother entry and exit for lowered vehicles.

Dual synchronized hydraulic systems, hydraulic locking, and triple mechanical safety protection ensure stable and secure operation.

High-strength alloy steel X-frame structure with laser/CNC cutting and precision-engineered hydraulic cylinders.

Extendable approach ramps support long-wheelbase vehicles; optional infrared leveling system and anti-foot-pinch protection during lowering are available.

Specifications

Technical data

ATL-3.6SU

Rated Lifting Capacity
3600 kg
Lifting Height
1880 mm
Platform Length
1480-2090 mm
Platform Width
630 mm
Minimum Height
110 mm
Motor
380V / 220V / Other options, 3 kW
Air Supply Pressure
0.4-0.6 MPa
Package Dimensions / Weight
205 × 115 × 23 cm / 706 kg

Videos

See the ATL-3.6SU 3.6-Ton Heavy-Duty Ultra-Low Profile Small Platform Scissor Lift in action

Play video: AUTOOL ATL-3.6SU Scissor Lift | Installation & Setup Guide

AUTOOL ATL-3.6SU Scissor Lift | Installation & Setup Guide
