TCA403Low-Profile Swing Arm Tire Changer

AUTOOL TCA403 Tire Changer features a compact design and durable clamps for efficient tire service.

Compact low-profile design, suitable for space-limited tire service bays and budget-oriented workshops.
Composite material housing enhances machine strength, reduces working head vibration, and improves operational stability.
Dual-direction large air cylinders and dual exhaust design provide fast return movement and powerful bead breaking…
Hardened alloy steel clamps with protective covers, combined with a stainless-steel mounting head and anti-scratch pads,…
Pull-out foot valve assembly simplifies maintenance; digital inflation gauge enables quick and accurate tire pressure reading.

Wheel Rim Clamping Range: 10″-24″
Working Air Pressure: 8-10bar
Rotation Speed: 8rpm

TCA403 at a glance

Wheel Rim Clamping Range: 10″-24″
Working Air Pressure: 8-10bar
Rotation Speed: 8rpm

Overview

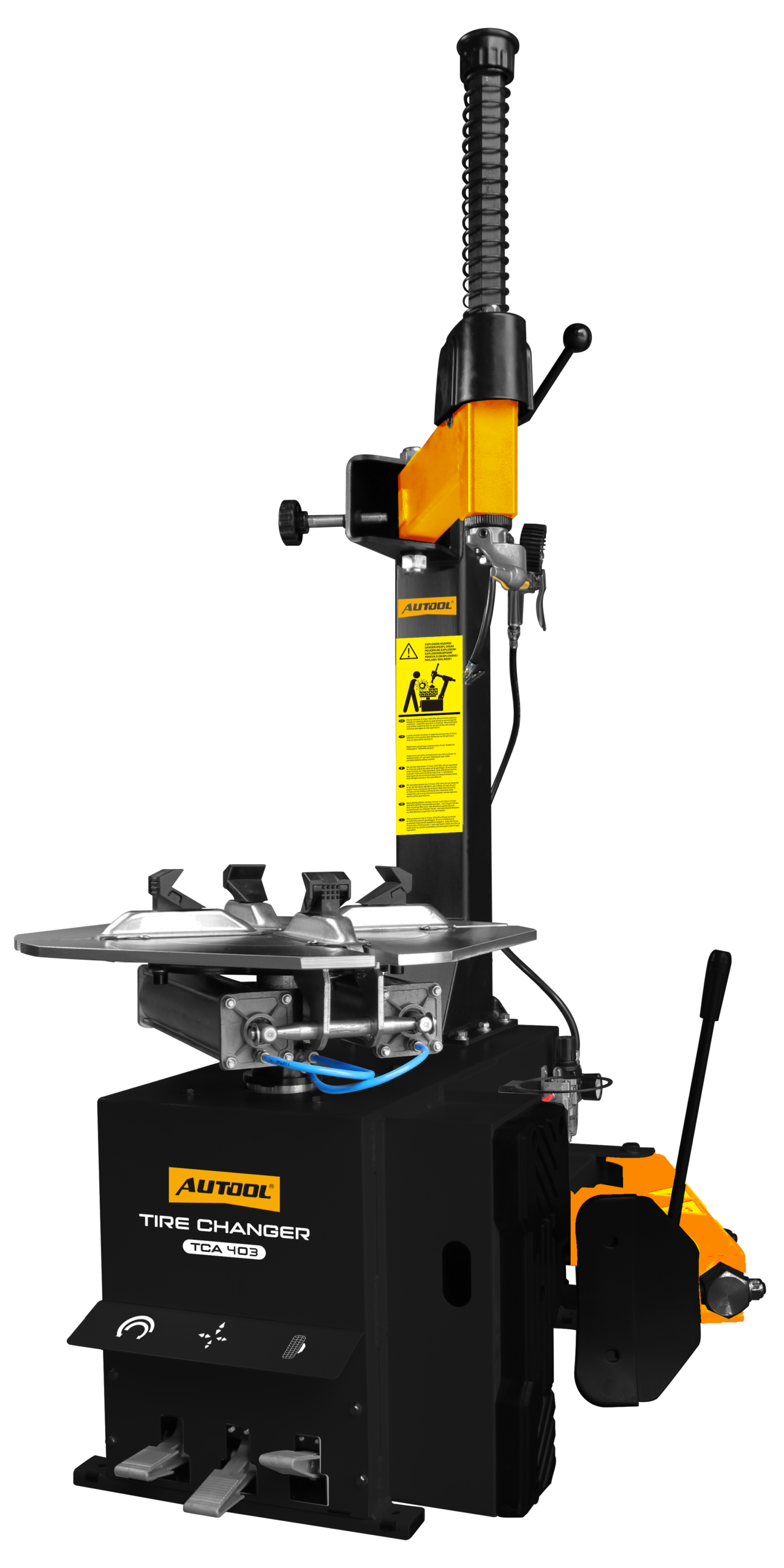

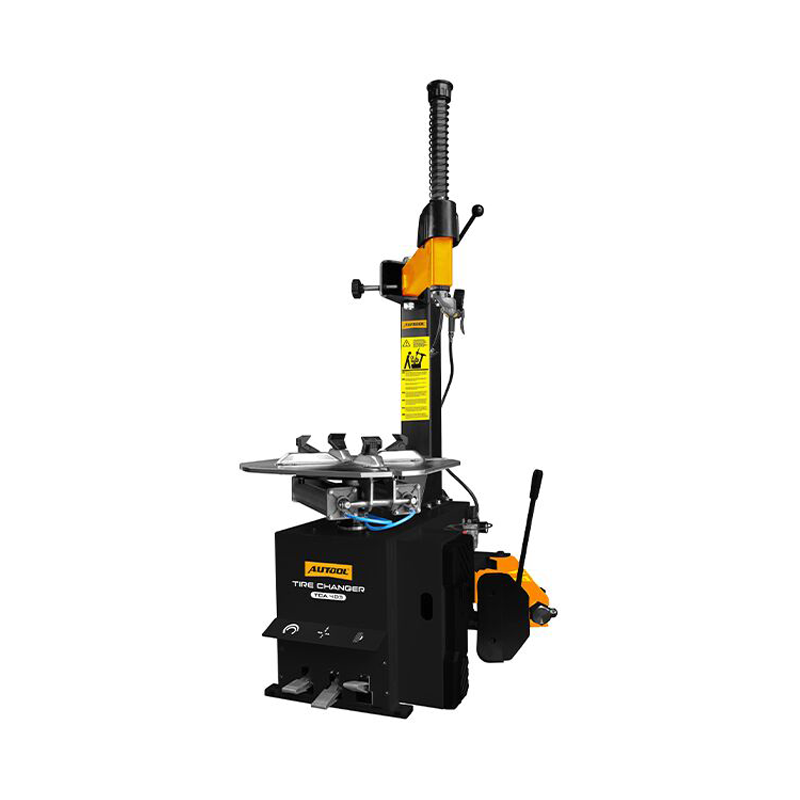

TCA403 Low-Profile Swing Arm Tire Changer

A compact tire changer designed for newly established workshops, quick service shops, and medium-volume tire service bays. It is mainly suitable for routine tire mounting and demounting of passenger cars and family SUVs. With a compact footprint, intuitive operation, and low maintenance complexity, it meets the needs of daily tire service operations.

Features：

Compact low-profile design, suitable for space-limited tire service bays and budget-oriented workshops.

Composite material housing enhances machine strength, reduces working head vibration, and improves operational stability.

Dual-direction large air cylinders and dual exhaust design provide fast return movement and powerful bead breaking performance.

Hardened alloy steel clamps with protective covers, combined with a stainless-steel mounting head and anti-scratch pads, reduce the risk of rim damage.

Pull-out foot valve assembly simplifies maintenance; digital inflation gauge enables quick and accurate tire pressure reading.

Specifications
