TCA509TIRE CHANGER
The AUTOOL TCA509 Tire Changer features a dual-column, dual-cabinet, three-slide design for high strength and easy operation.
- Vertical lifting of disassembly head: saves space and automatically lifts the tire.
- The lower auxiliary tire pressure rod automatically extends and retracts, and the second layer tire opening…
- The assistive hand adopts a three bar design and can be disassembled with 12 inch to…
- The high-definition display screen can monitor the precise position of the roller and wheel rim.
- The labor-saving pressure rod for disassembling and assembling the head can assist in aligning the disassembly…
- Rim Diameter
- 12~30″
- Tire Width
- 13″
- Tire Diameter
- 1000mm
TCA509 at a glance
- Rim Diameter
- 12~30″
- Tire Width
- 13″
- Tire Diameter
- 1000mm
- Turntable Speed
- 7~14rpm
Overview

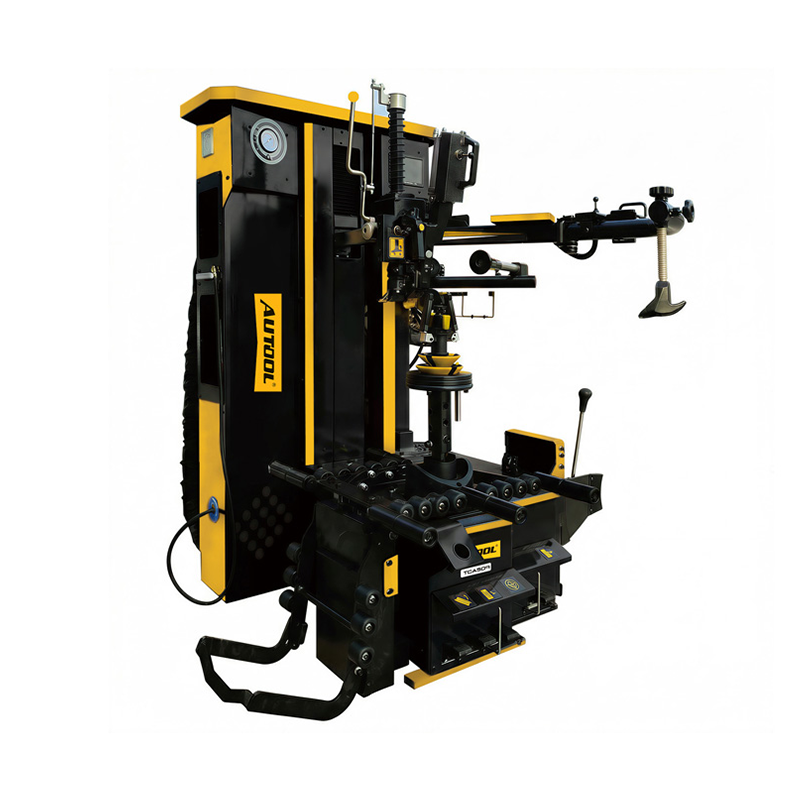

TCA509 TIRE CHANGER
The AUTOOL TCA509 Tire Changer features a dual-column, dual-cabinet, three-slide design for high strength and easy operation. Equipped with a standard servo motor, it offers adjustable speed control for efficient and safe tire mounting and demounting. The mounting head moves vertically to save space, while the automatic tire lifting function makes tire handling easier. A dedicated fast-charging area for mobile phones is conveniently located on the upper side of the column.
Product Features
Vertical lifting of disassembly head: saves space and automatically lifts the tire.
The lower auxiliary tire pressure rod automatically extends and retracts, and the second layer tire opening can be removed.
The assistive hand adopts a three bar design and can be disassembled with 12 inch to 30 inch tires.
The high-definition display screen can monitor the precise position of the roller and wheel rim.
The labor-saving pressure rod for disassembling and assembling the head can assist in aligning the disassembly head with the edge of the wheel hub.
There is a fast charging area for mobile phones located above the pillar side.
Specifications
Technical data
TCA509
- Power Supply
- AC 220V/380V
- Rim Diameter
- 12~30″
- Tire Width
- 13″
- Tire Diameter
- 1000mm
- Motor Power
- 1.1kw/0.75-0.9kw
- Turntable Speed
- 7~14rpm
- Air Source Pressure
- 8-10 bar
- Gross Weight / Net Weight
- 410kg/343kg
