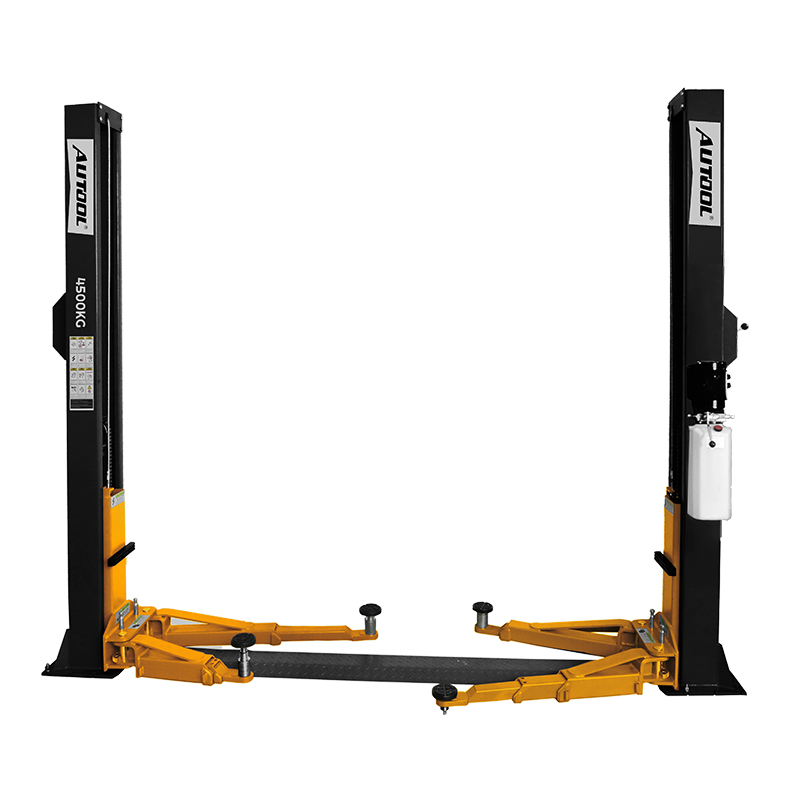

ATL-4.5C 4.5-Ton Single-Side Control Baseplate Two-Post Lift

AUTOOL ATL-4.5C 4.5-Ton Hydraulic Two-Post Lift for general repair, brake, suspension, and chassis service in low-ceiling workshops.

Dual hydraulic cylinder direct drive with steel cable synchronization to maintain smooth and balanced movement between…
Single-side control design improves locking and release efficiency.
Gear-type arm locks combined with hook-type mechanical safety structures provide multi-level protection.
Laser-cut load-bearing components, wear-resistant sliders, and imported sealing components help reduce long-term maintenance requirements.

Rated Lifting Capacity: 4500kg
Lifting Range: 95-1930mm
Overall Height: 2820mm

ATL-4.5C 4.5-Ton Single-Side Control Baseplate Two-Post Lift at a glance

Rated Lifting Capacity: 4500kg
Lifting Range: 95-1930mm
Overall Height: 2820mm
Clearance Between Posts: 2860mm

Overview

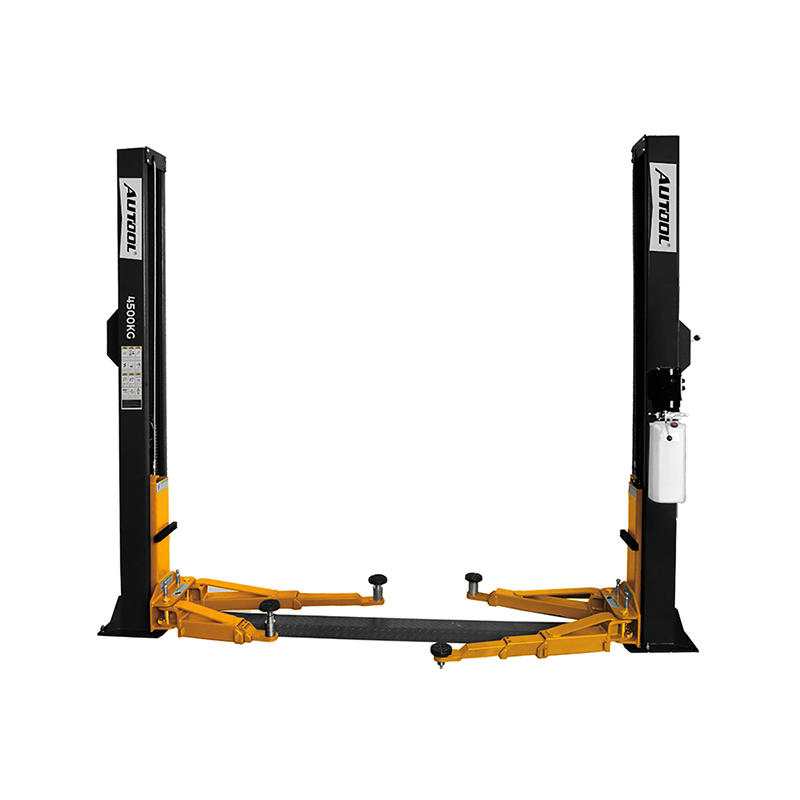

ATL-4.5C 4.5-Ton Single-Side Control Baseplate Two-Post Lift

Designed for general repair, chassis inspection, brake, and suspension service operations, this 4.5-ton hydraulic two-post lift provides a practical solution for professional workshops. With an overall height of 2820 mm, it is well suited for repair bays with limited ceiling height while still providing excellent under-vehicle access.

Product Features

Dual hydraulic cylinder direct drive with steel cable synchronization to maintain smooth and balanced movement between both posts.
Single-side control design improves locking and release efficiency.
Gear-type arm locks combined with hook-type mechanical safety structures provide multi-level protection.
Laser-cut load-bearing components, wear-resistant sliders, and imported sealing components help reduce long-term maintenance requirements.

Specifications

Technical data

ATL-4.5C

Rated Lifting Capacity: 4500 kg
Lifting Range: 95-1930 mm
Raising / Lowering Time: 50 s / 30 s
Overall Height: 2820 mm
Clearance Between Posts: 2860 mm
Overall Width: 3440 mm
Power Supply: 380V / 220V optional
Motor Power: 2.2 kW

Support

Manuals & downloads

User manual
ATL-4.5C-EN-Manual.pdf
PDF
